Roller Type Veneer Drying Machine, peeled veneer drying technology

Specification
Model: HG-RL30
Working layer: 2-4 DECKS
Working width: 2800 mm
Drying room length: 28-46 m
Cooling length: 6 m
Working speed: 10-30 m/min
Drying temperature: 160-190 ℃
Drying capacity: 2.5-5 m3/h
Veneer thickness suggested: 1-4mm
Heating method: boiler or in built furnace

Efficiently Working for 1-4mm peeled or sliced veneer drying,Drying period is short and efficeint. 1-4 decks roller type drying line and the hot air circulating system. Improve veneer quality.

The good dried peeled veneer or sliced veneer sheets with proper moisture have many influence on the plywood,LVL beams and other wood based panel board.It can save the glue spreading amount and decease the wastes amount in the further plywood making procedure.


The veneers with smooth and gradually moisture removing and drying, seldom have crack and shape changing phenomenon. Roller conveyor and hot air recycle in the drying room keep veneer flat and good quality.


Save heating and save your fuel costs. With hot air recycle and circulating using in the drying room keep good drying performance and good thermal efficiency.

for drying veneer core.jpg

Technical Parameters

MODEL
HG-RL30-4
REMARKS
Working width 2800 mm
Working layers
2decks2-4 customize
Heating room28 m14 sections
Cooling area9 m
Roller transfer motor11 kw*2
Heating blowing motor11 kw*14
Cooling fan motor5.5 kw*4
Veneer transfer out3 kw*1
Moisture discharge5.5 kw*2
Heating mediumsteam or thermal oil boiler
Heating consum2.5million KCAL or 4T boiler
Drying temperature140-180 ℃
Veneer thickness1.3-4 mm
Initial veneer moisture
50-60%
Final veneer moisture
10±2%
Transfer rollers distance
330 mm
Transfer roller diameter
Ø 100mm
Transfer roller material
iron steel or stainless steel
Cooling fan size1800*600*1600 mm
Structure frameQ235,4.7 mm steel plate
Overal Size
46*6*3.5 mcustomizing
Container loading
2-3* 40HC
Weight
about 60 T

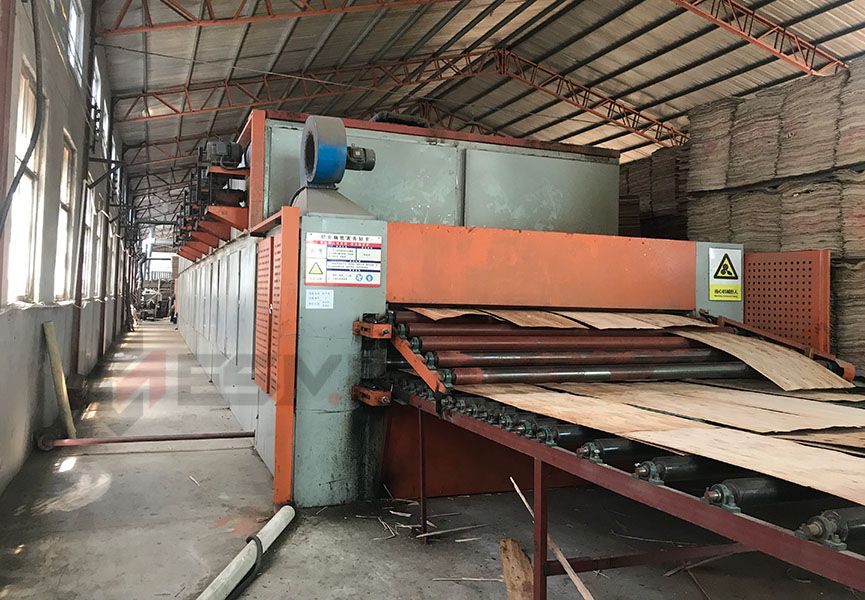

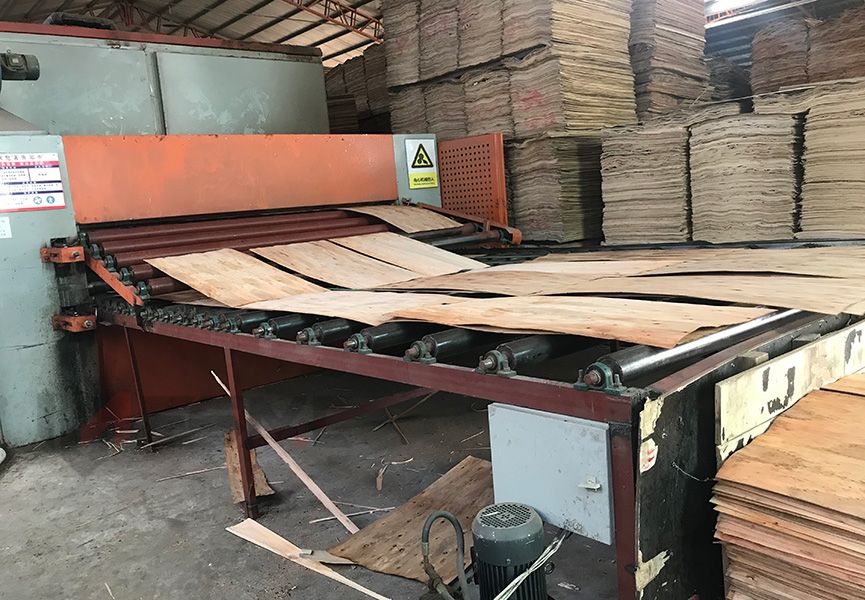

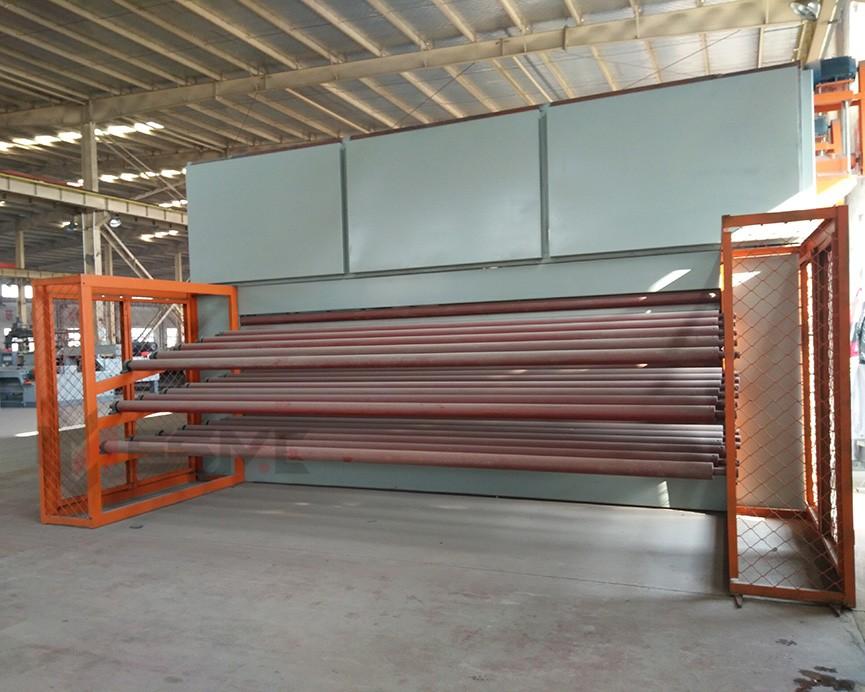

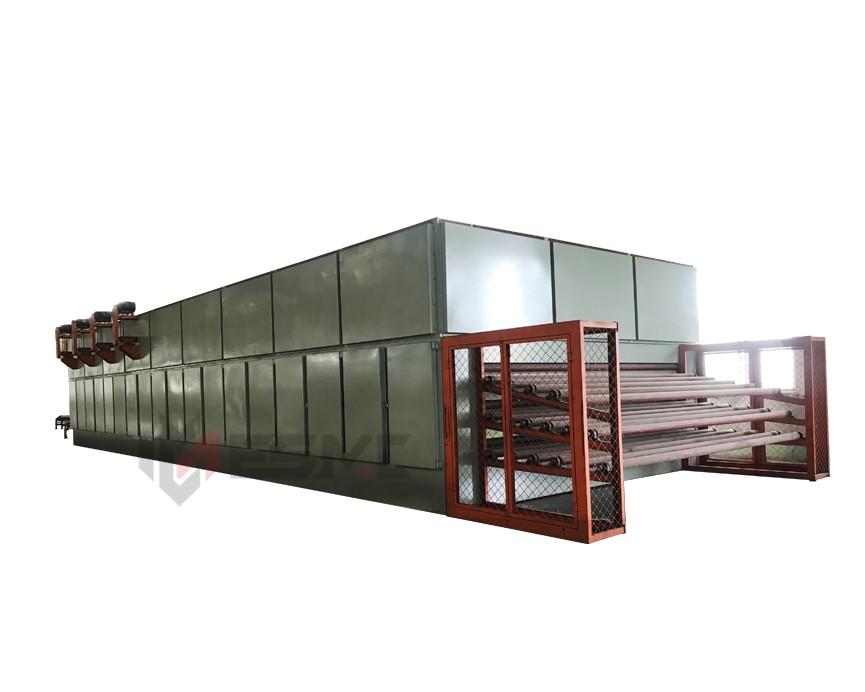

This kind roller type veneer drying machine have drying room and cooling conveyor 2 parts. With the roller transfer system drive veneers movement. And use the draught fans inducing hot air to pipes and blowing on veneer surface. The heating can be cooling fan and boilers or can choose the in built furnace. Both keep with good safe working. With hot air circulating in the drying room. The drying efficiency is well confirm.

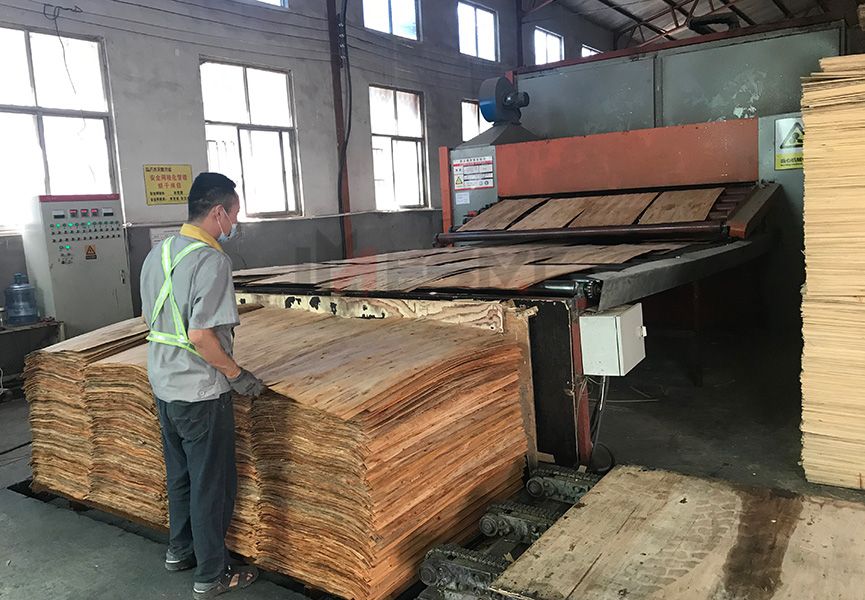

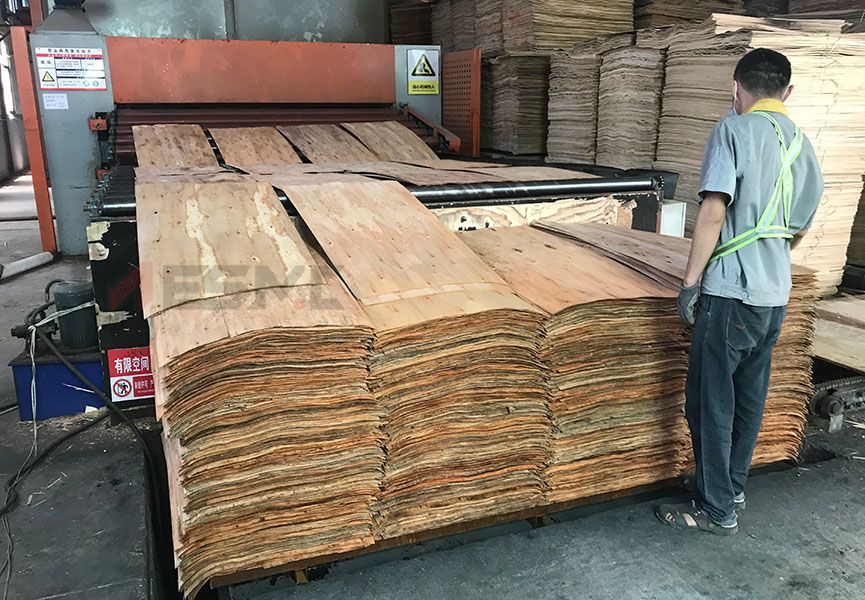

1. The roller drying machine production line. Mainly service thee drying of  plywood core veneers (rotary cut) around 1mm-4 mm. Using rollers conveying and chains driving, easy to main and suits large drying output veneer working factory.

2. With the rollers heating and press the veneers during transfer, veneers lose moisture gradually and turn dry and flat. This would be better than the outside sunshine drying and have not limitation of weather.

3. The hot air through the heating air pipes blowing both on the veneer face and back. The hot air circulating in the during room.No only gain a very good drying efficiency, but also save much heat wastes and fuel costs.

4. According to output. 1-4 decks and 20-40m drying room can choose and customize for your veneer production.

5. All the parts and basic frames will be assembled and test working in workshop. After delivery, engineers will rebuilt the drying line in your factory.

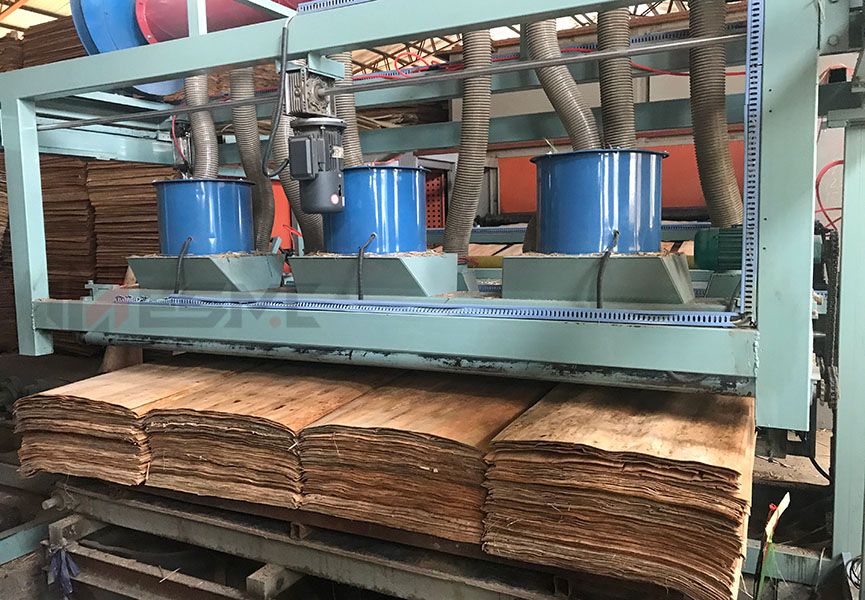

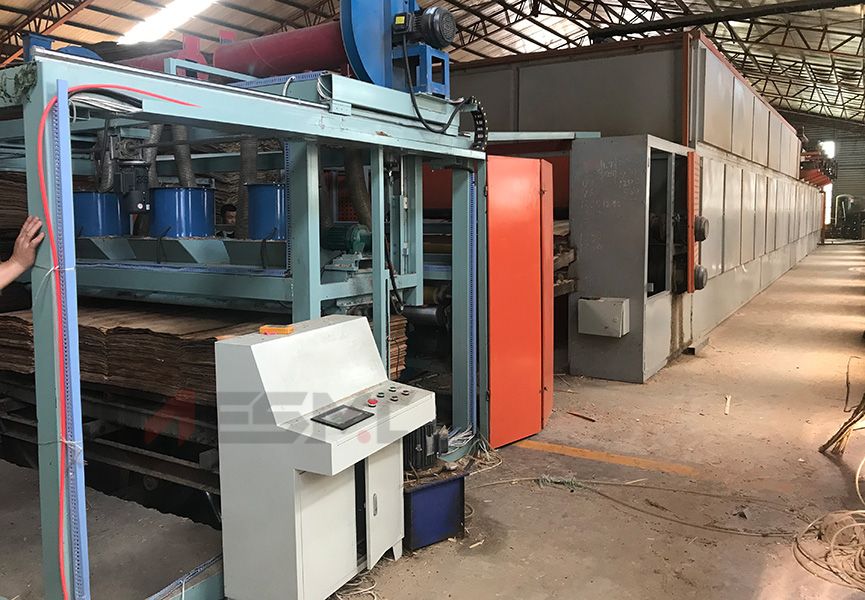

We can supply you with different kinds drying plants according to production requirements. Such as roller type dryer, hot press dryer machine, mesh type veneer dryer and the shelf drying room type dryer plant. The automatic feeding system and veneer stacking after drying can also be supplied and equipped on the line.
