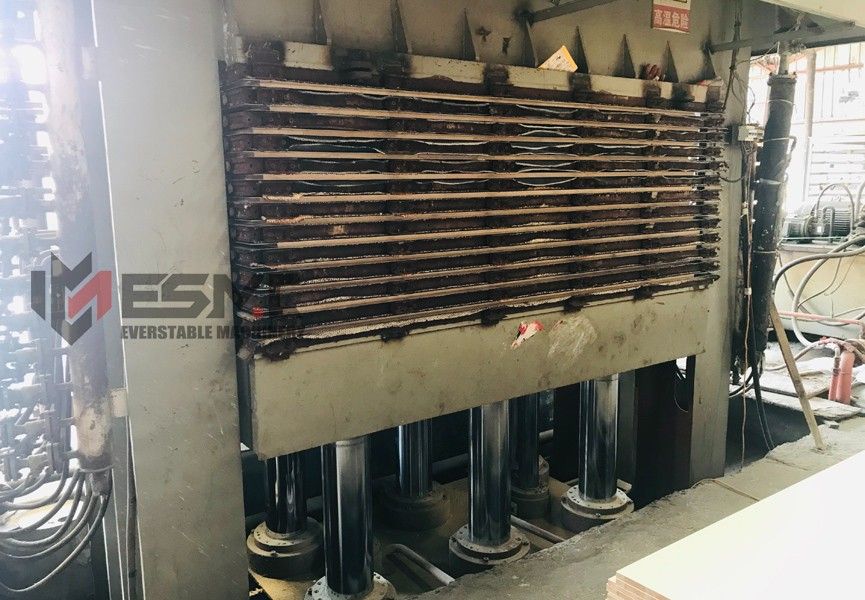

It is perfect for producing durable film-faced plywood with fancy surface for furniture, wear resistance for construction plywood and other industrial applications. Its robust structure, innovative hydraulic system and advanced automation features make it become an ideal choice for high-quality woodworking panels production lines.
Key Features:
1. Heavy-Duty Frame: Manufactured from national standard steel plates for maximum durability and performance.
2. Even Pressure Distribution: Multi-cylinder hydraulic system ensures uniform pressure across the plywood surface.
3. Integrated Hydraulic System: Advanced one-piece hydraulic design with pressure sensors and accumulator upgrades for stable operation.
4. Energy Saving: Equipped with new thermal insulation pads to minimize heat loss.
5. Automatic Controls: Seamlessly switch manage method with all operations, including pressing, timing, and pressure maintenance, with a single control panel.
|
|
|
| Model | ESBY214-8/4-10 |
| Norminal Pressure | 8000 KN |
| Rated working pressure | 800 T |
| Hot platen size | 1370*2700*52 mm |
| Working Layers | 8, 10, 12 |
| Layer Distance | 100mm |
| Plunger Oil Cylinder | 260mm*6 units |
| Work Stroke | 1000 mm |
| Pressure resistance |
≤ 25 MPa |
| Empty Load Closing Time | about 17 second |
| Low-pressure Pump Flow | 100L/min |
| Allowed Pressure |
≤ 5 MPa |
| Power | 22 kw |
| High-Pressure Pump Flow | 35 L/min |
| Board Unit Pressure | 20 kgf/cm2 |
| Power | 7.5 kw |
| Max Board Size | 1250×2500 mm |
| Machine Weight | about 40 Tons |
| Overall Size | 3600x1400x4300 mm |
| Control System | PLC, auto hydraulic pump station |
| Top and Bottom Beam Height | 900 mm. 1000 mm |
| Middle Movable Beam Height | 400 mm |
| Steel Plate Thickness | 35mm, 20mm, 12mm |
|
|
|
Advantages:
· High precision and stability in veneer and melamine film lamination press.
· Reduced energy consumption with double recycle heating recycle management features.
· Low maintenance requirements with high-quality components and accessories.
After Sale :
Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.
Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.
4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
