Plywood edge sawing machine, China plywood edge trimming saw

Specification
Model： ESM-4 Sides SAW
Cutting size： 1220*2400 mm
Ajusting size range： 3*6' to 4*8'
Sawing thickness： 3-60mm
Saw blade motor： 7.5 kw *4 units
Transfer motor： 2.3kw*2
Capacity： 2000-3000 pcs/day
Install size： 6500*5000*1200mm
Weight： 5800 kg

Linyi plywood machinery, plywood edge sawing machine. This CNC edge sawing machine suits different kind plywood, film faced plywood edge cutting, four sides edge automatic sawing working. China latest plywood edge trimming saw.

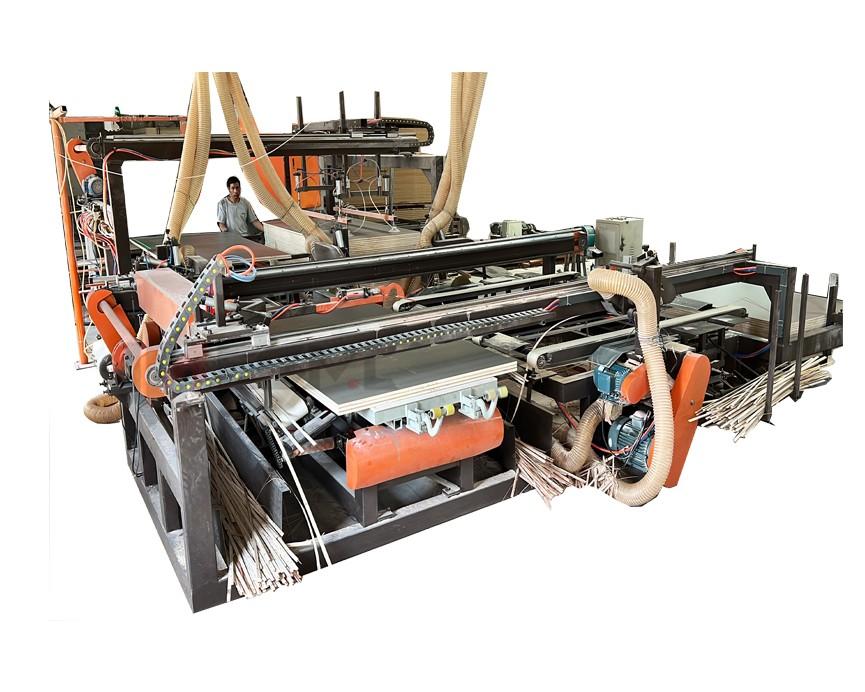

Auto 4 sides Plywood Edge Trimming Saw Introductions:

Linyi plywood machinery, plywood edge sawing machine. Suits different kind plywood, film faced plywood edge cutting, four sides edge automatic sawing working. China latest plywood edge trimming saw. This CNC automatic plywood saw machine mainly works for the plywood edge making.

At Shandong linyi plywood working machinery top supplier with decades of years manufacturing experience, we specialize in offering advanced plywood edge cutting machines designed to meet the needs of modern woodworking industries. Our automatic 4-sides plywood edge trimming saw is engineered for high-precision, efficient, and smooth operation. This cutting-edge machine suits working with various plywood types, including film-faced plywood, construction plywood and other wood based panel machinery performs automatic cutting on all four sides with impressive speed and accuracy.

Key features of the machine include:

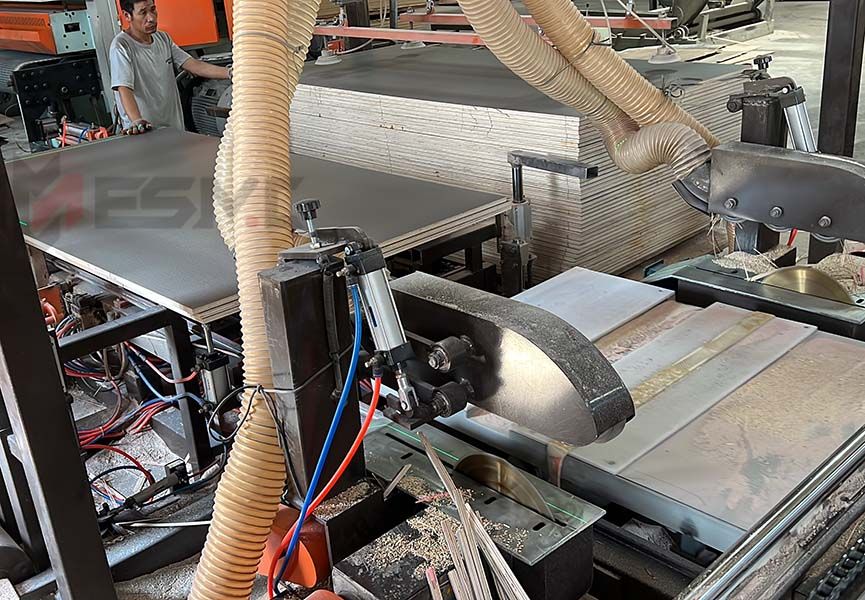

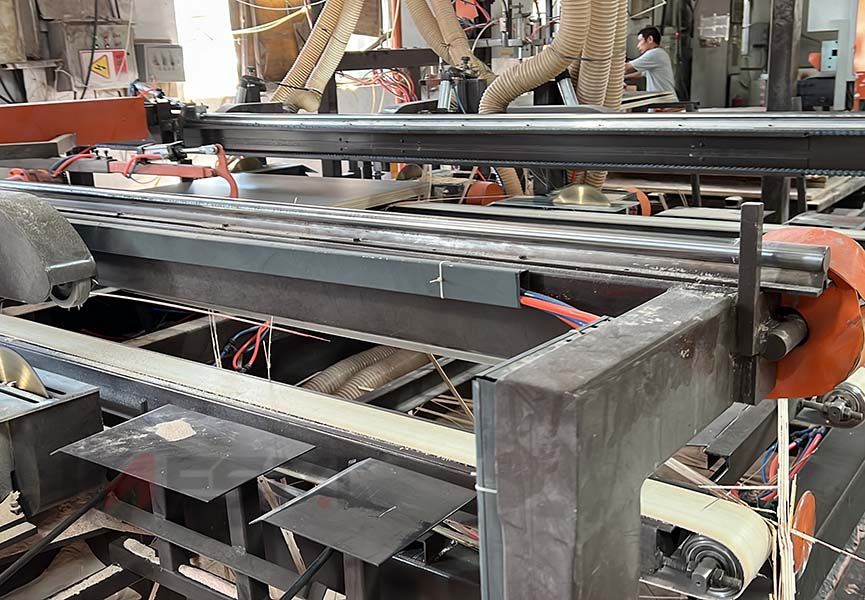

- Auto transfer and sawing : The machine automatically transfers plywood and cuts the horizontal sides before moving on to the vertical sides, ensuring uniform edges.

- High efficiency and precision: Capable of cutting multiple boards simultaneously, with a total height of up to 60mm in one pass.

- Adjustable cutting size: The CNC plywood edge sawing machine supports plywood sizes from 3x6 feet to 4x8 feet, catering to a wide range of production requirements.

- Advanced automation: Featuring auto feeding, hydraulic stacking, infrared positioning, and a waste removal mechanism, the cutting edge sawmill machine streamlines the entire production process with minimal human intervention.

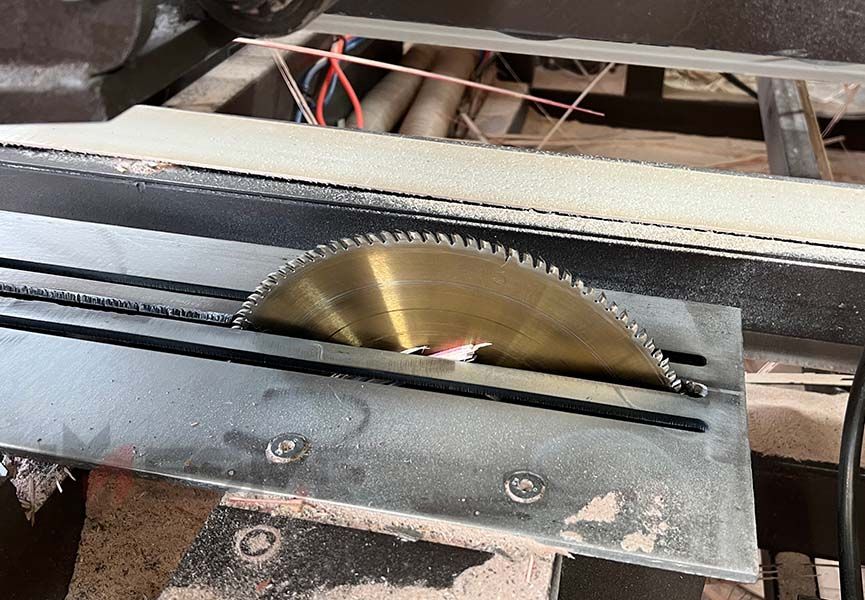

- Reliable components: the edge trimming tool built with high-quality steel for durability, the edge saw machine also integrates parts from trusted brands like Omron and Schneider to ensure long-term safety and reliability.

This machine is really the ideal solution for plywood working factory to boost their production capacity and improve precision and quality in plywood edge trimming works.

Technical Parameters

MODEL	ESM-4 sides SAW

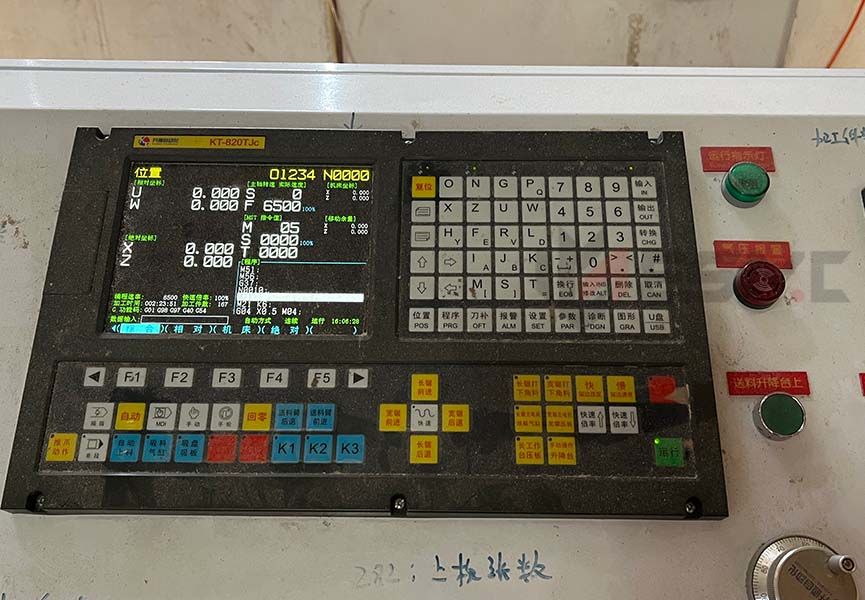

Control method	CNC, automatic
Cutting board size	12202440 mm (36' to 4*8' adjustable)
Cutting thickness	3-60mm
Saw blade power	7.5kw*4units
Auto board forwarding power	2.3 kw*2 (servo motor)
Lifting power	3 kw
Install size	650050001200 mm
Weight	5800kg
Capacity	2000-3000 pcs/day
Auto feeder type	suction disc feeding

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.

Welcome to vist the ESMC Shandong plywood machinery workshops for

automatic wood edge trimming saw for plywood.
