Lamination Hot Press | Melamine Paper Hot Press Machine

Specification
MODEL： ESBY214-8/4-10
Pressure： 600T/800T/1000T
Hot Platen Size： 1370*2700*52 mm
Main Frame Steel Plate Thickness： 35,20 mm
Oil Cylinder Size： Ø260 ,6 units
Power： 29.5 kw

The 800T Lamination Hot Press is special for high-efficiency lamination of melamine paper or construction plywood black/brown film face onto plywood, block board and other woodworking panels .

This lamination hot press can make 600T,800T, 1000T pressure, main frame is welded with high-quality steel plates, ensuring long-lasting structural strength. Equipped with advanced smart control, it offers both manual and automatic mode operation for processes like lifting and falling, pressure application, pressure maintenance, pressing time adjust controls.

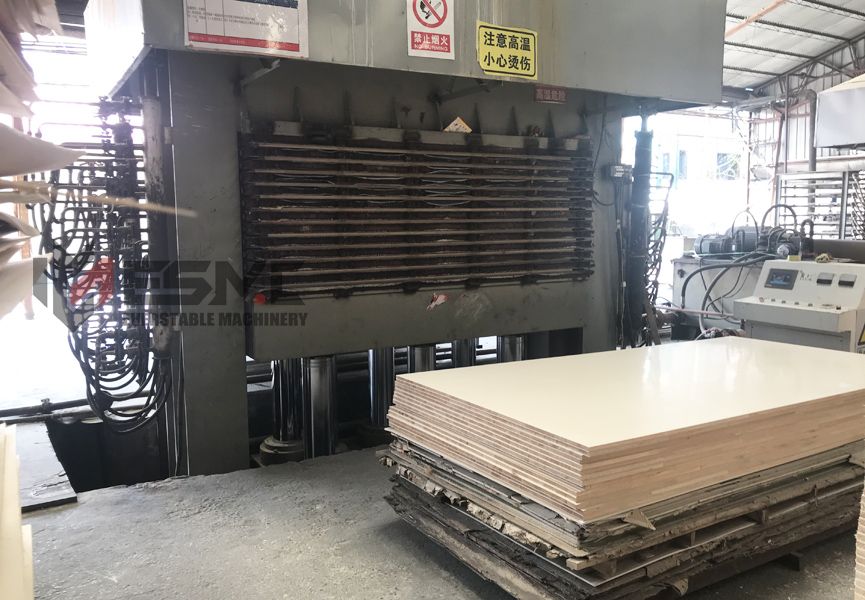

800 FILM FACE HOT PRESS.jpg

Key Features:

1. Durable Structure: High-grade steel frame with precision-machined surfaces ensures uniform stress distribution and extended lifespan.

2. Optimized mechanical and electrical Components: Features international and domestic high-quality accessories (like touch screen,PLC, hydraulic station.etc) significantly reducing failure rates.

3. Low noise hydraulic system: Low-noise, high-speed hydraulic system with multiple cylinders for even pressure distribution.

4. Energy Efficiency: Large-area thermal insulation pads reduce heat loss and optimize energy use.

5. User-Friendly Operation: Automatic controls combine physical control buttons simplify the lamination process, enhancing productivity.

Model	ESBY214-8/4-10
Norminal Pressure	8000 KN
Rated working pressure	800 T
Hot platen size	1370270052 mm
Working Layers	8, 10, 12
Layer Distance	100mm
Plunger Oil Cylinder	260mm*6 units
Work Stroke	1000 mm
Pressure resistance	≤ 25 MPa
Empty Load Closing Time	about 17 second
Low-pressure Pump Flow	100L/min
Allowed Pressure	≤ 5 MPa
Power	22 kw
High-Pressure Pump Flow	35 L/min
Board Unit Pressure	20 kgf/cm2
Power	7.5 kw
Max Board Size	1250x2500 mm
Machine Weight	about 40 Tons
Overall Size	3600x1400x4300 mm
Control System	PLC, auto hydraulic pump station
Top and Bottom Beam Height	900 mm. 1000 mm
Middle Movable Beam Height	400 mm
Steel Plate Thickness	35mm, 20mm, 12mm

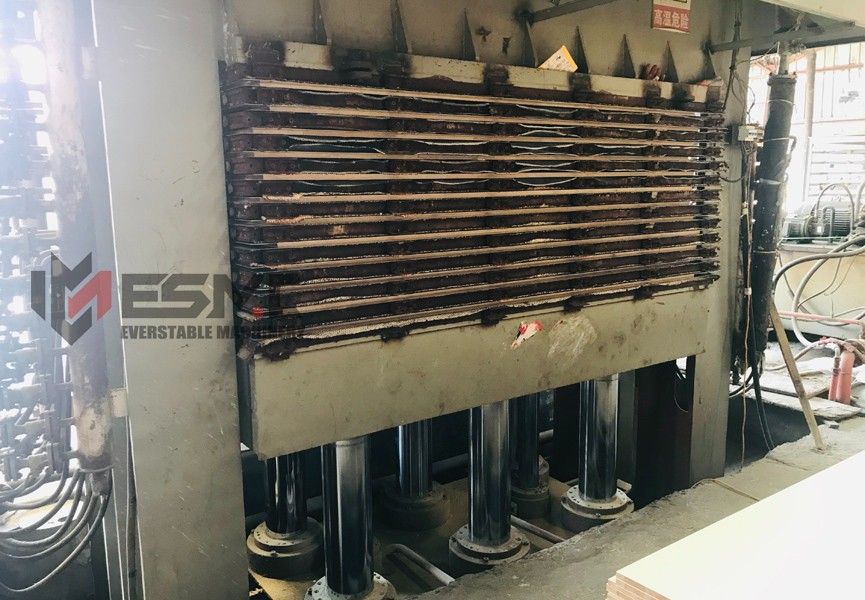

lamination hot press.jpg

Advantages:

· Stable and even pressure distribution across all pressing layers.

· Reliable and efficient hydraulic station with a large oil tank and cooling system.

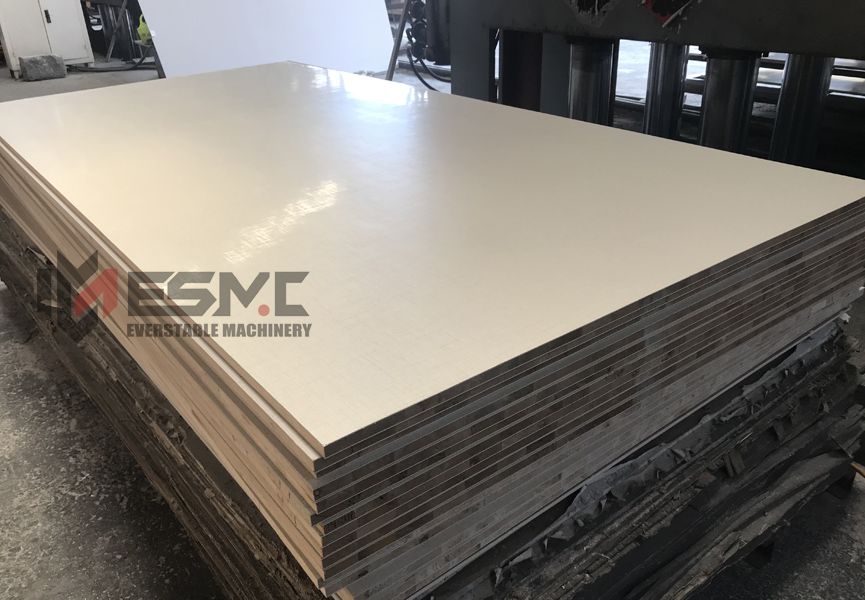

· Good choice for producing high quality flat melamine-laminated panels with high precision and quality.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
