knife blade corect adjustment is very important: Spindle veneer peeling machine 2024.09.12

Rotary cut veneer peeling machine manufacturing has a very important position in wood based panel industry. When it comes to the spindle and spindle less peeling machine,the peeling knife blade is surely a very important part on the peeling machine, it determined if can peel logs into stable quality veneers. The correct install steps will affect the performance and output of the machine, today we will find out about it how to adjust knife gap according to differet veneer thickness.

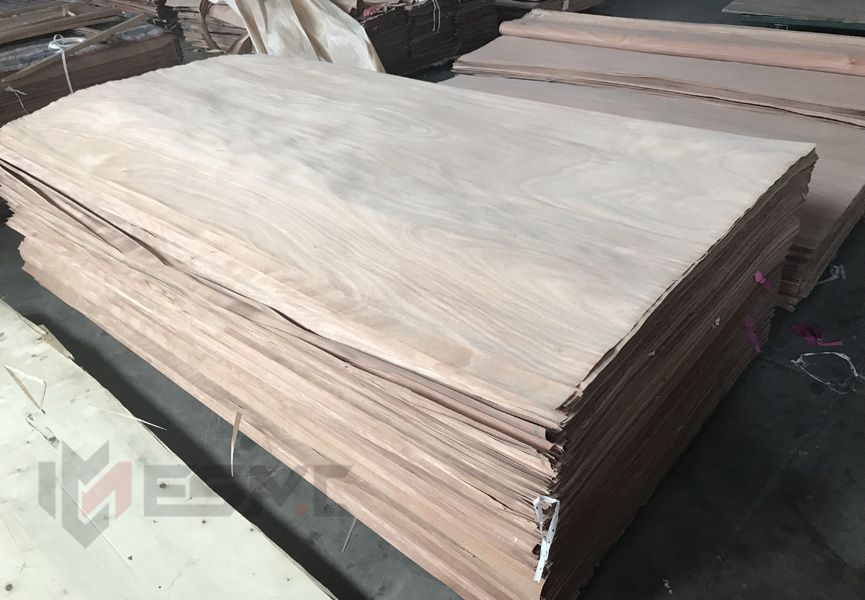

veneer peeling.jpg

How to adjust veneer spindle peeling machine knife blade to peel different veneer thickness?

If veneer thickness need to peel is differ not very much only need to adjust thickness setting on touch control interface, if differ much need to adjust the knife and pressure bar back and front knife blade distance (knife gap).

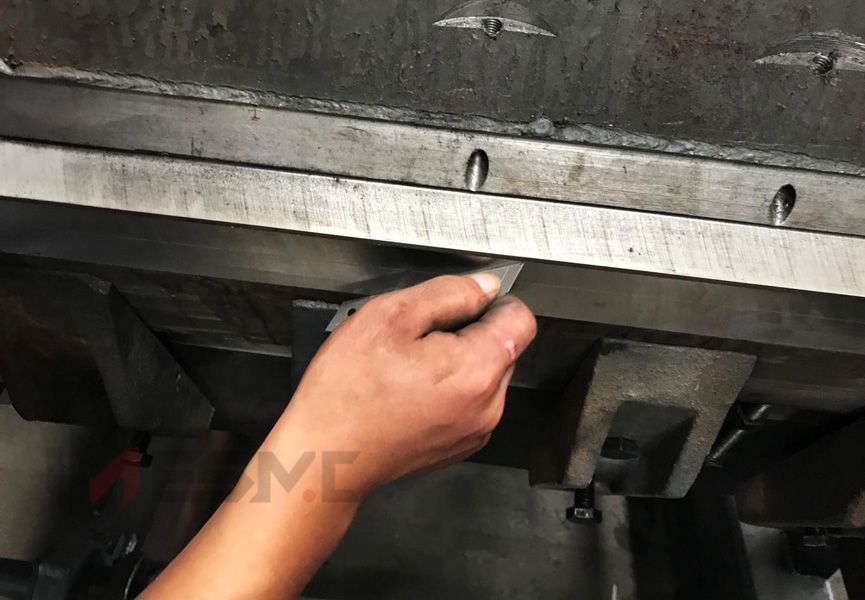

peeling machine spindle.jpg

Adjust the pressure bar and knife blade slop. Front and back distance. (notice: before out factory, spindle peeling machine pressure bar needle and knife slop have been adjusted in same plane for your convenience)

When peel 0.3mm, veneer peeler pressure bar and knife slop just need keep in same plane. 0.3-1mm can adjust back and front distance by 0.6-0.7mm according experiences and log situation.

When the chuck peeling machine peel 1mm can adjust the distance of 1mm,

when peel 2mm can adjust the distance of 2mm. (front knife blade and back pressure bar)


We must know that if you use the knife tool to process other products, like peeling different thickness don't make it beyond its tolerance, it will continuously to reduce the service life. Suggest choose suitable peeling equipment with suitable motor, parts.etc according to log kind,veneer thickness and size. Feel free send message or contact us to get suitable quality veneer peeling machine and plywood working machinery.
