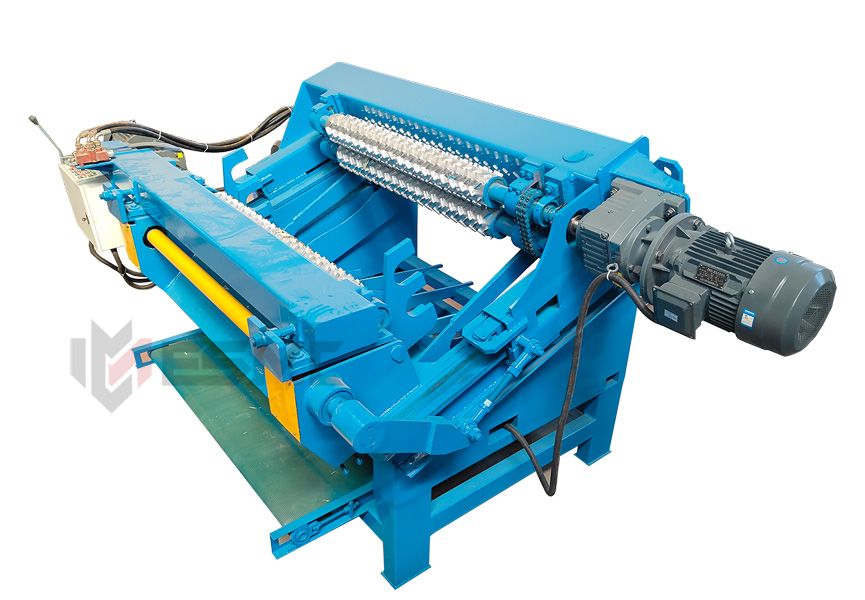

Debarking and rounding machine

Specification
MODEL： ESM-150HD
Log Diameter： 80-700 mm
Log Length.Max.： 1500 mm
Rub Roller Diameter： 180 mm
Single Roller Power： 11 kw
Double Roller Power： 11 kw
Hydraulic System Power： 5.5 kw
Weight： abt. 3800 kg

This slop type debarker also called the ‘triangle type debarking and rounding machine with changeable knife gap design and much stronger frame structure, so even very big and hard logs can efficiently processing and working. If your logs are big and bend, this kind spindle less debarking machine will helps a lot to the high out log processing production.

Hydraulic spindle less wood log debarking machine as the first step of veneer rotary production. Can efficiently remove log barks and round the straight logs. Making veneer peeling more efficient and better quality.

This slop type debarker also called the ‘triangle ’ debarking and rounding machine with changeable knife gap design and much stronger frame structure, so even very big and hard logs can efficiently processing and working. If your logs are big and bend, this kind spindle less debarking machine will helps a lot to the high out log processing production.

Machine Detail:

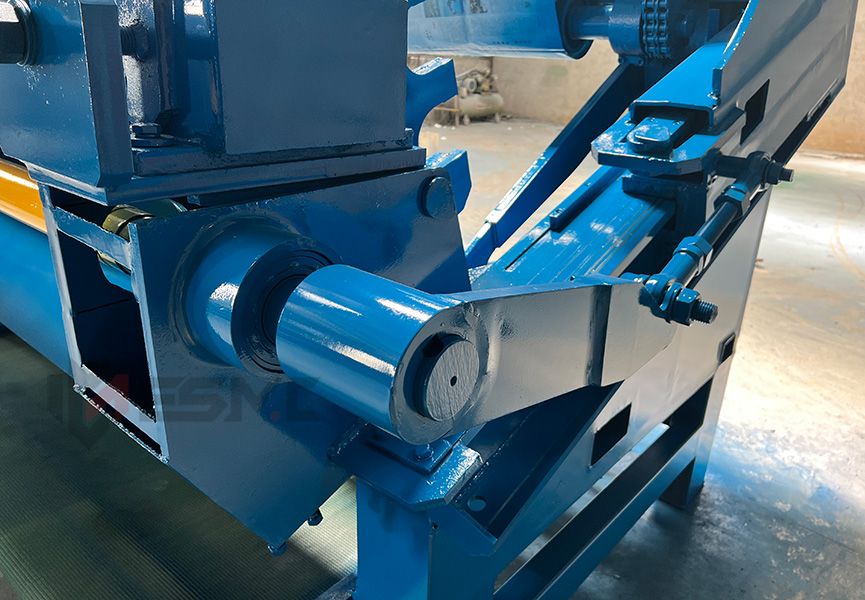

This log debarking machine use adjustable knife gap. The knife gap is movable during the debarking, if the log is bend and with big branch let. Can move efficient debarking.

hydraulic debarking.jpg

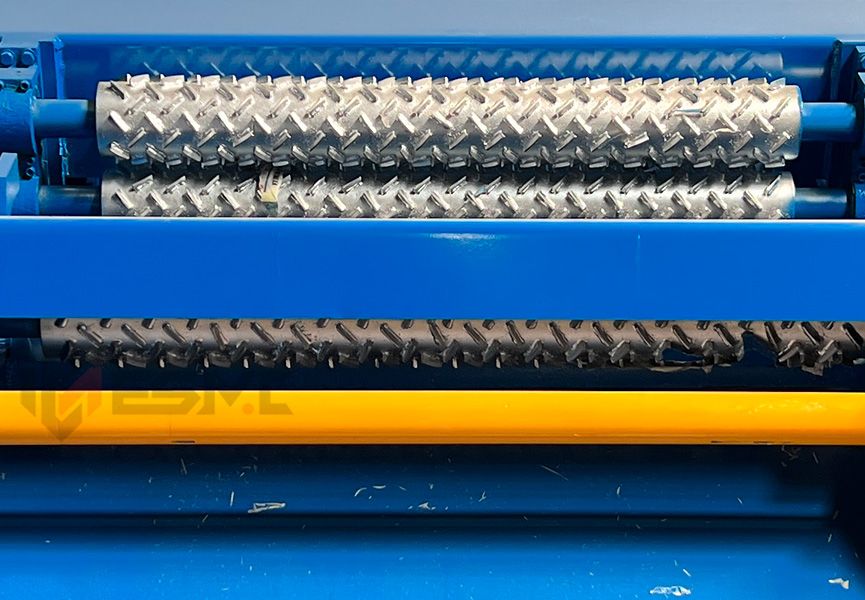

Use bigger gear teeth grains hard treat rubbing rollers to remove the hard logs. More efficient and better rounding performance for big and hard logs.

debarking machine rollers.jpg

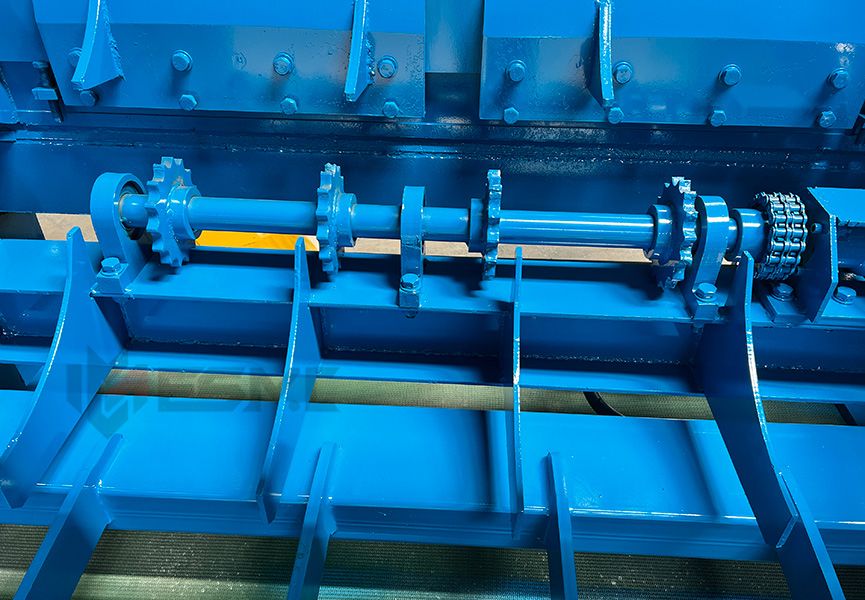

With rolling support rollers, even logs 2 ends with different diameter, or very heavy logs of 600-700mm. Can also rotary with the rollers and debarking.

debarking machine.jpg

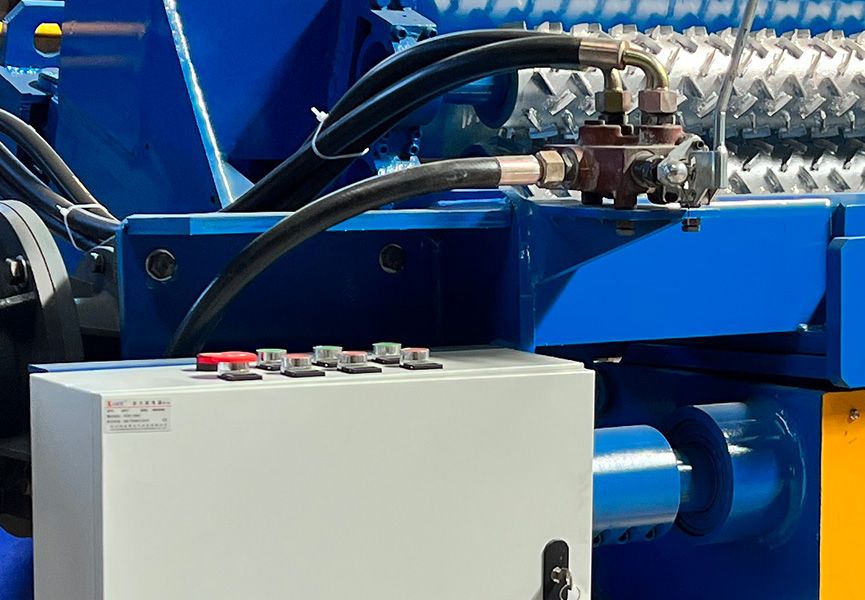

Simple control. Short time can command the operating. With hand rock control the hydraulic station make the log rotating. With buttons to control the start and pause.

control method.jpg

Please feel free to contact for the heavy duty log debarking machine from 4ft to 10 ft with different models. We will try best make the good and stable veneer plywoodworking machine to you. And offer the full term after sale service. ESMC appreciate your support and trust.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
