construction Plywood Hot Press Machine | Film-Faced Hot Pressing Machine

Specification
MODEL： ESBY214-8/4-10
Pressure： 600T/800T/1000T
Hot Platen Size： 1370*2700*52 mm
Main Frame Steel Plate Thickness： 35,20 mm
Oil Cylinder Size： Ø260 ,6 units
Power： 29.5 kw

The Construction Plywood Hot Press Machine is made for the efficient production of film-faced plywood, widely used in the construction and furniture plywood making industry.

With solid planger oil cylinders, 52mm hot platens with double in and out heating recycle system, thicker hot platens and advanced hydraulic system, customization settings ensure good performance and consistent high quality for construction and film faced furniture plywood making .

hot press machine8000KN.jpg

Key Features:

1. Robust Frame: Built with precision-machined steel for enhanced durability and uniform stress distribution.

2. Efficient Hydraulic System: Features multiple units solid planger oil cylinders to provide consistent and even pressure on the plywood and film face surface.

3. Leak-Proof Design: Oil cylinders equipped with collection trays for pressure dispersion, heat isolation.

4. Optimized Heat Management: Insulated upper press plate minimizes heat loss, reducing energy consumption.

5. Automation Ready: PLC controls auto/manual mode switch allow easy operation and precise adjustments to pressing parameters setting.

6. 52mm thick hot platen more durable . more flat and good heating performance greatly keep better plywood surface and lamination quality.

7. Double in and double out oil recycle design. Keep unify heating on the board surface, improve laminating and press board quality.

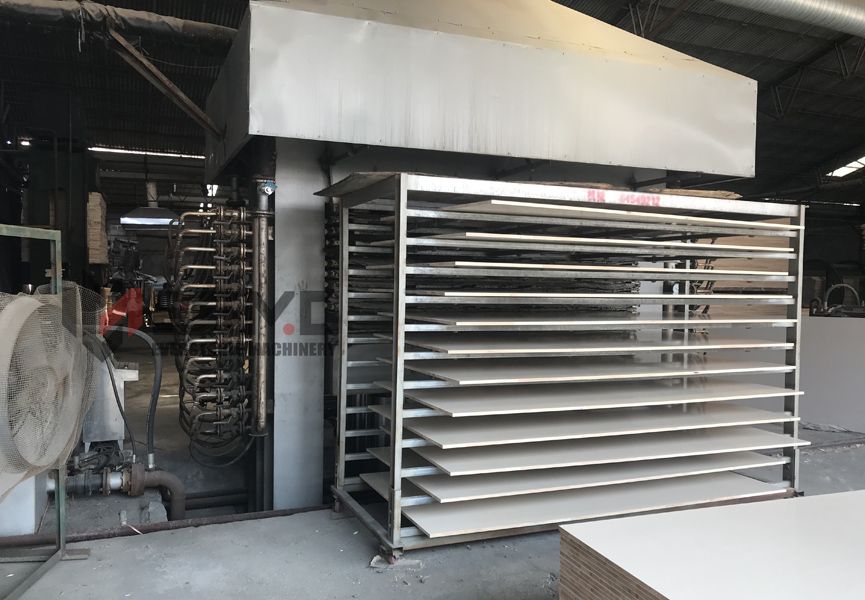

plywood hot press machine.jpg

Model	ESBY214-8/4-10
Norminal Pressure	8000 KN
Rated working pressure	800 T
Hot platen size	1370270052 mm
Working Layers	8, 10, 12
Layer Distance	100mm
Plunger Oil Cylinder	260mm*6 units
Work Stroke	1000 mm
Pressure resistance	≤ 25 MPa
Empty Load Closing Time	about 17 second
Low-pressure Pump Flow	100L/min
Allowed Pressure	≤ 5 MPa
Power	22 kw
High-Pressure Pump Flow	35 L/min
Board Unit Pressure	20 kgf/cm2
Power	7.5 kw
Max Board Size	1250x2500 mm
Machine Weight	about 40 Tons
Overall Size	3600x1400x4300 mm
Control System	PLC, auto hydraulic pump station
Top and Bottom Beam Height	900 mm. 1000 mm
Middle Movable Beam Height	400 mm
Steel Plate Thickness	35mm, 20mm, 12mm

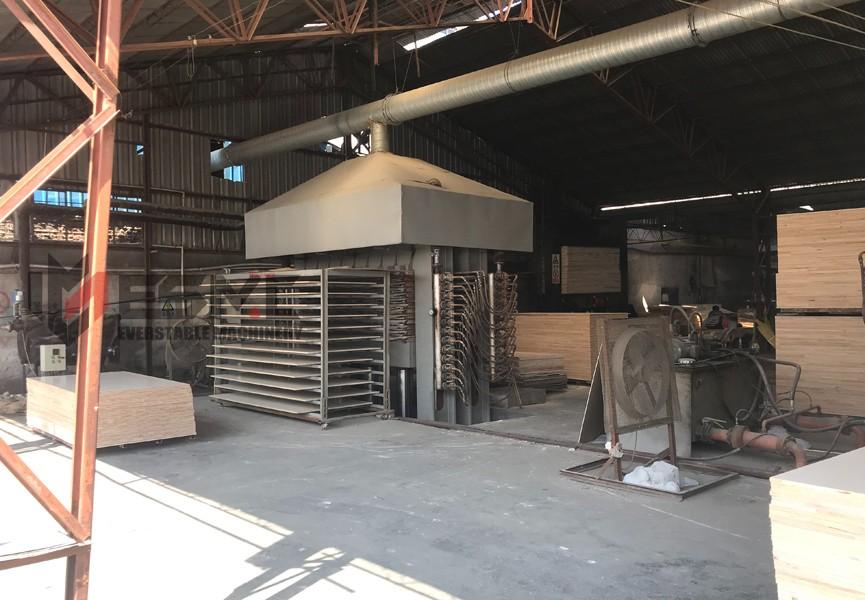

hot press machine for 800t.jpg

Advantages:

· High-pressure capability ensures strong bonding and smooth surfaces.

· Perfect for producing construction and furniture-grade plywood and melamine-laminated plywood with film-facing.

· Reliable performance and low downtime with premium hydraulic components.

· Double in and double out heating recycle.6-8 units oil cylinder confirm unify pressure, better board surface and quality.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
