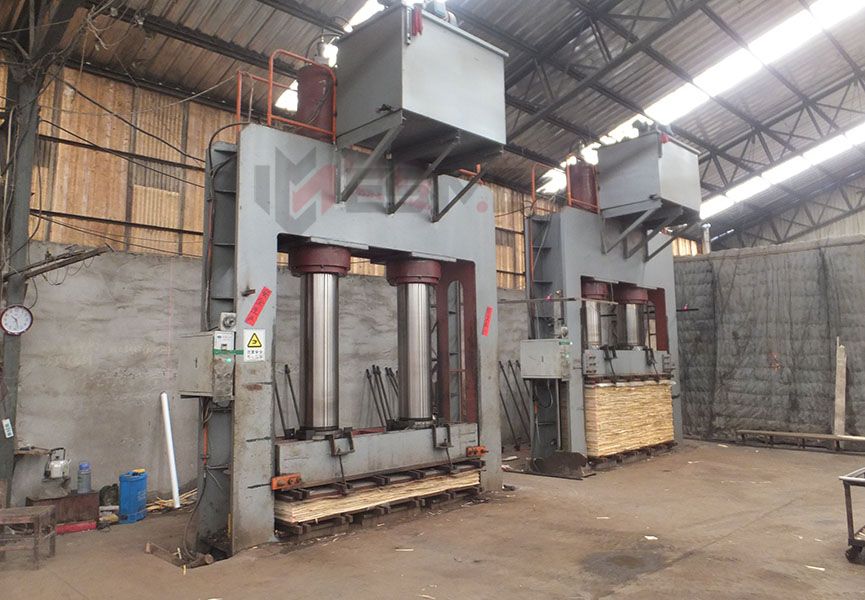

Cold pressing process machine for plywood manufacturing.

Specification
Model： ES-CL4X8
Pressure： 500 T
Main steel plate material： Q235B
Main steel plate thickness： 35-45mm
Platen size： 1400*2700 mm
Oil cylinder： 360mm*2units
Oil cylinder position： upside (bottom can choose)
Drying capacity： 2.5-5 m3/h
Power： 15 kw
Dimension： 3500*1700*3800mm
Weight： 15 Tons

Pre press the paved glued veneers and forming the plywood.It can greatly improve the final plywood,LVL boards quality.

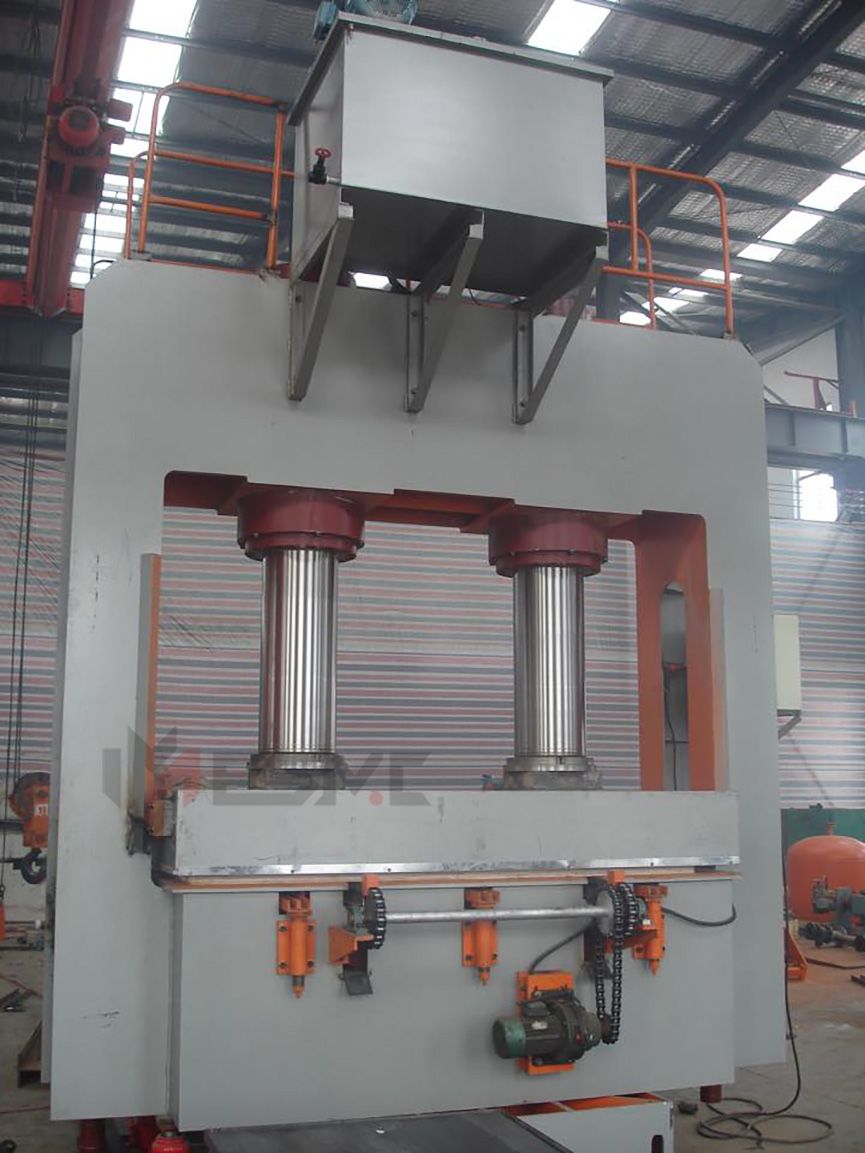

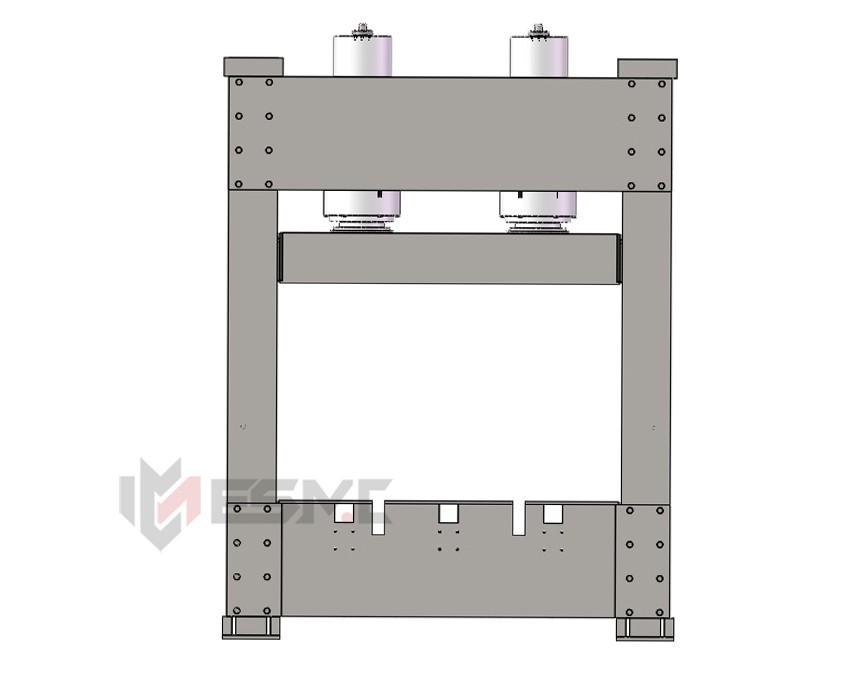

The cold press machine oil cylinder can be installed upside or the bottom sides. This cylinder upwards pre press machine can install auto chain conveyors to feed in or transfer out plywood board after finishing.

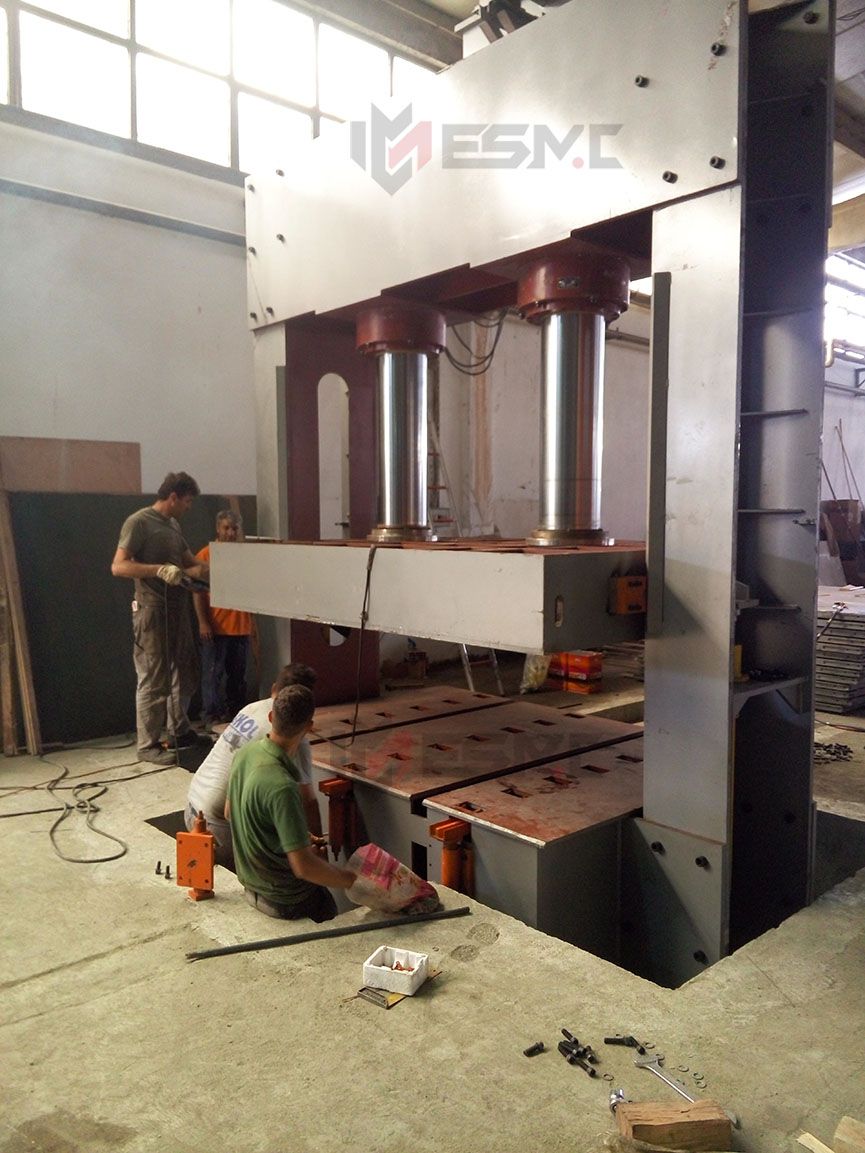

Take with heavy duty structure frames. Using 35-40mm steel plate forming the main structure. Solid oil cylinder equipped corrosion resistance oil seals to keep smooth working and no oil leakages.

Pre-press the plywood . Improve Plywood Making Procedure.

Pressure: 500T

Opening Space: 1800mm

Steel material: Q235B

Steel thickness: 35-40mm

Upper and bottom beam height: 900mm

Feed direction: transverse

Platen size: 1400*2700mm

Cylinder: 360mm*2pcs

Lifting cylinder: 100mm*2pcs

Cylinder position: upside position.

Power: about 15 kw

Dimension: 3500x1370x3800mm

Weight: 15 tons
