Specification
Model: ESM-1400HD2
Veneer thickness: 0.3-4 mm
Log length: 1300 mm
Processing diameter: 40-500 mm
Peeling speed: 30-100 m/min
INTRODUCTION

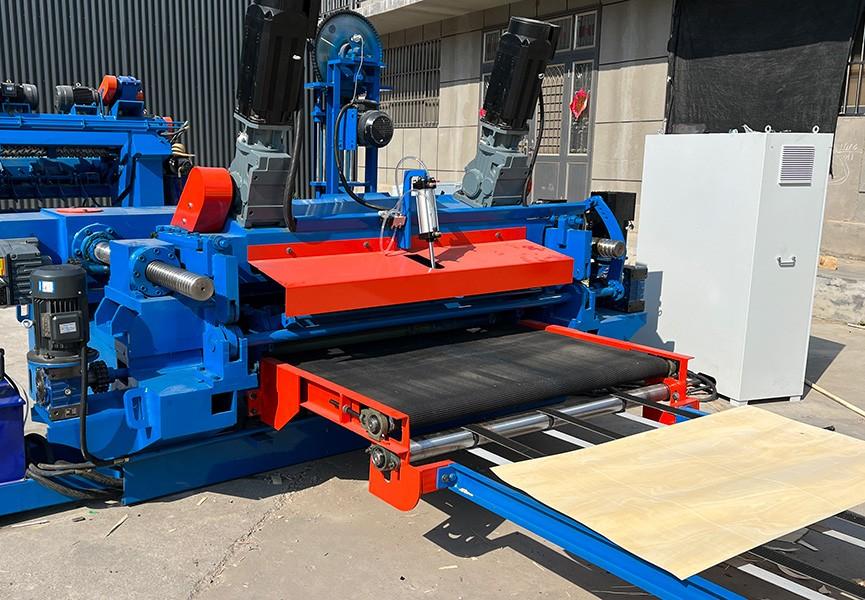

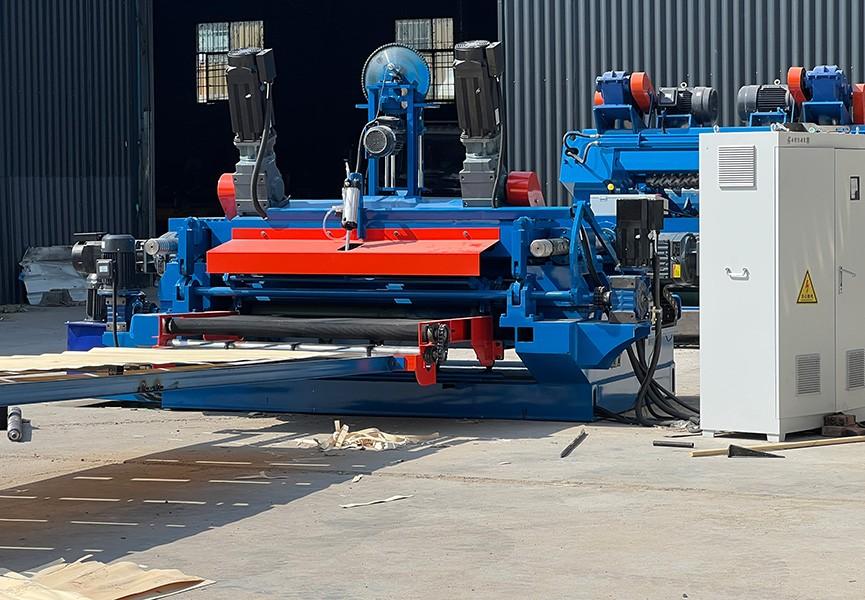

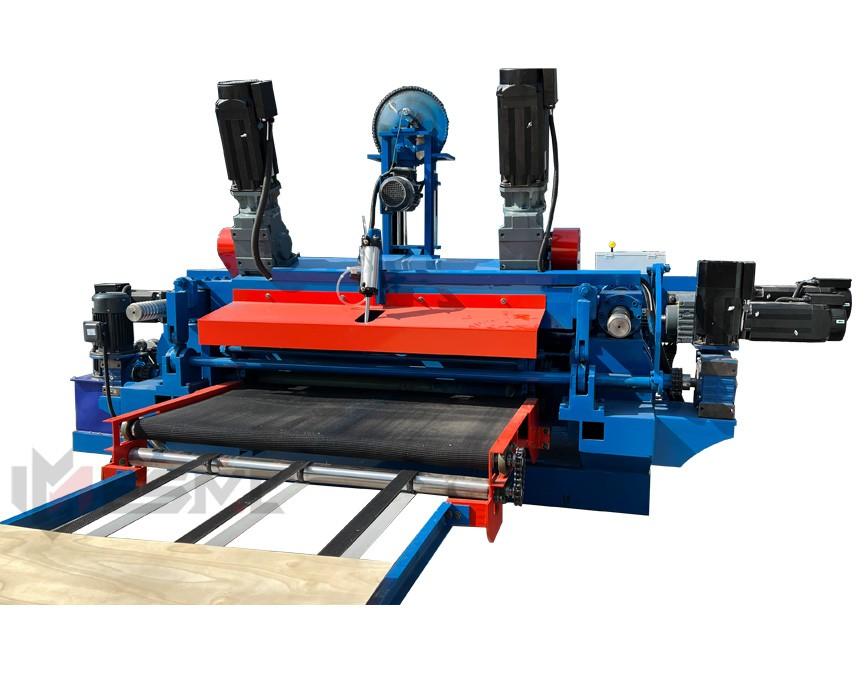

The Wood-Based Panel Face Veneer Peeling Lathe is a mature and improved veneer working products to meet the high-demand veneer production needs of the woodworking and panel-making industries. This heavy duty spindle less peeling machine specializes in efficiently peeling high-quality veneer sheets from logs, particularly face veneers, which are important in the production of plywood, laminated boards, and other composite wood products.
The veneer peeling lathe is known for its precision, stability, and operational efficiency, making it the must need equipment to enhance productivity while maintaining superior product quality.
TECHNICAL PARAMETERS
MODEL:ESM-1400HD2 | UNIT | PARAMETERS |
Log diameter | mm | 30-500 |
Log length | mm | 1300 |
Veneer thickness | mm | 0.3-4 |
Peeling speed | m/min | 30-100 |
Knife carriage motor power | kw | 11, servo motor |
Double roll power | kw | 7.5, 2 units, servo motor |
Single roll power | kw | 7.5, 2 units, servo motor |
Inbuilt rotary clipper | kw | 3.7, servo motor |
Weight | kg | 6000 |
Peeling pressure adjust | YES | |
Hydraulic knife load | YES | |
Auto knife adjusting | YES |
ADVANTAGES
Auto-Adjust Veneer Thickness: Automatically adjusts veneer thickness with precision, allowing for one-touch knife gap changes for smooth transitions.
Hydraulic Knife Clamp System: The hydraulic system makes loading and securing the knife fast and effortless, enhancing safety and reducing downtime.
High-Speed Adjustment: The machine is designed for 30-100m speed adjustments, maximizing peeling efficiency and suits different hardd level and diameter logs.
Auto Peeling Pressure Adjustment: Automatically adjusts peeling pressure as the log diameter changes, resulting in consistent veneer quality and reduced material waste.
Smooth Veneer Surface and Accurate Thickness: Delivers superior veneer surface smoothness and precise thickness control, ensuring high-quality veneer sheets.
Heavy-Duty Structure: Reinforced components and a robust frame provide exceptional stability and durability, ensuring long-term, reliable performance.
