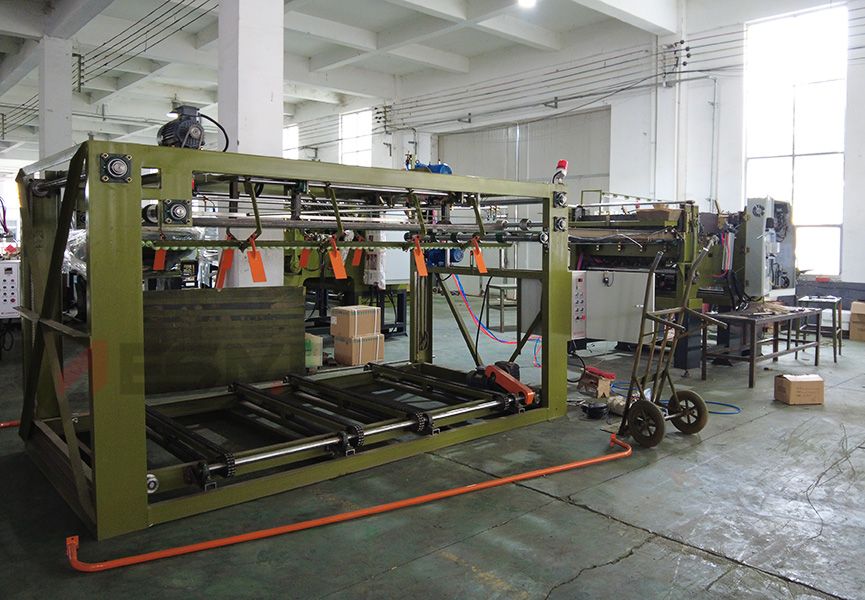

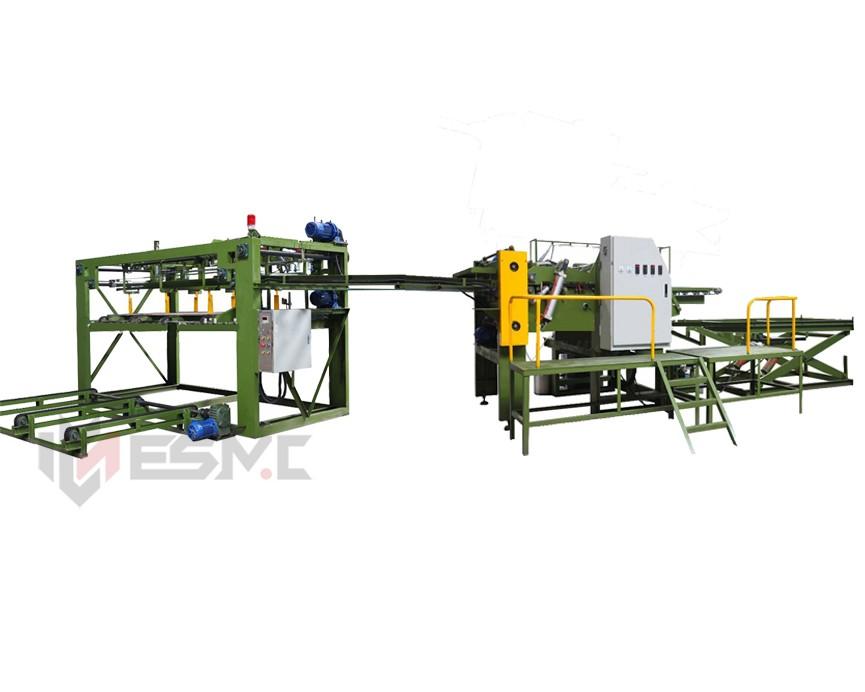

Automatic plywood veneer composer, veneer jointing machine

This composing machine can be well used  in the long core veneers making for furniture plywood, construction plywood making, also for the veneers taken to make wooden floor board material all kinds furniture board,block boards.Horizontally combine the veneers with glue and thread. Making into better quality and better strength long core. This jointed veneers can save more times in the plywood assemble procedure improve output. Comparing with manual veneer paving in traditional method, it no need repair the face and back veneers and greatly improve plywood production quality.

Auto veneer edge cutting, inspect size, detect the holes and and jointing by the glue and threads and auto stacking.

Panels (1.2-3.6mm thickness) after drying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them trimmed, glued, spliced, cut to length and stacked automatically. With this machine, customized board of different sizes can be spliced.

This Core Veneer Composer Machine Main Features:

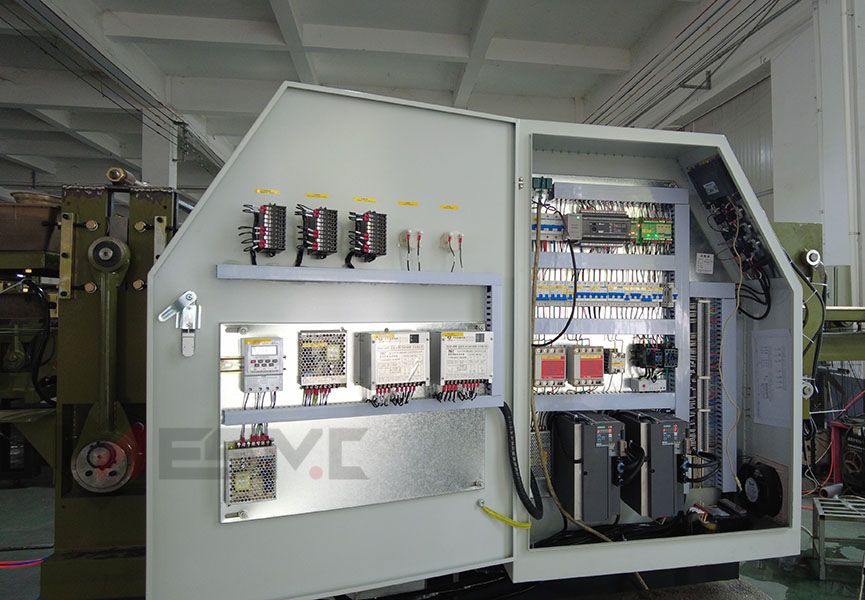

PLC control,auto checking and working.only one worker need.

High precision composing into 4x8ft or other size needed.

With veneer sides edging cutting,keep the jointed veneer with no gaps.

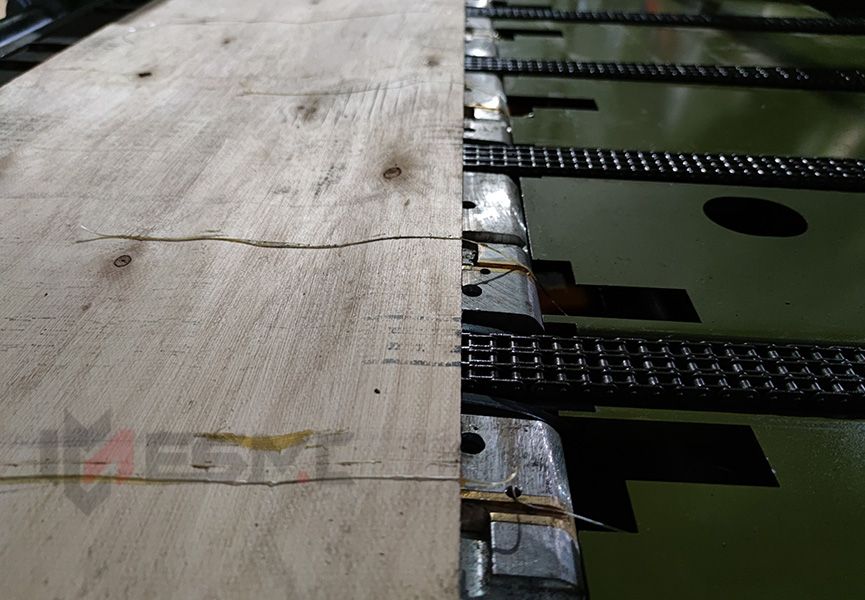

Auto spreading the hot melted glue on the thread and cross link the veneers.Auto cooling. Make the finished long veneer core with pretty strength.

Continuously working.and cutting in size. Each veneer joints is different.

Strong weld frame structure.

Used high standard electric parts like Festo, Delta,Siemens.etc keep stable performance.

Equipment maintenance

1. Check air pressure, oil and water separator, circulating water, hot melt adhesive condition, incoming material

no plate and foreign material can be found on the conveyor belt. The oil and water separator should be careful to check the oil level and the cleanliness of the oil, otherwise it will affect the life of the cylinder.

2. Gear parts, chains, universal joints, bearings, two sides of the knife should be lubricated regularly.

3. Add glue to the liquid level of the glue tank when the composer stops.

4. Do not stop the total power supply at short time rest, and keep the glue groove and aluminum block heating.

5. The circulating water temperature can't be high than 20 degrees in summer, and circulating water when the temperature is low than 1 degree in winter. The pneumatic system should have anti-freeze measures.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.

more plywood working machinery and veneer working process machine, feel free to contact us.
