Automatic Laminating Veneer Multi-Layers 800 Ton Film Faced Plywood Hot Hydraulic Press Machine

Specification
MODEL： ESBY214-8/4-10
Pressure： 600T/800T/1000T
Hot Platen Size： 1370*2700*52 mm
Main Frame Steel Plate Thickness： 35,20 mm
Oil Cylinder Size： Ø260 ,6 units
Power： 29.5 kw

This Automatic 800 Ton Hydraulic Press is specially designed for laminating multi-layer veneers or melamine paper as film faces on all kinds plywood and block board.

It is perfect for producing durable film-faced plywood with fancy surface for furniture, wear resistance for construction plywood and other industrial applications. Its robust structure, innovative hydraulic system and advanced automation features make it become an ideal choice for high-quality woodworking panels production lines.

Key Features:

1. Heavy-Duty Frame: Manufactured from national standard steel plates for maximum durability and performance.

2. Even Pressure Distribution: Multi-cylinder hydraulic system ensures uniform pressure across the plywood surface.

3. Integrated Hydraulic System: Advanced one-piece hydraulic design with pressure sensors and accumulator upgrades for stable operation.

4. Energy Saving: Equipped with new thermal insulation pads to minimize heat loss.

5. Automatic Controls: Seamlessly switch manage method with all operations, including pressing, timing, and pressure maintenance, with a single control panel.

Model	ESBY214-8/4-10
Norminal Pressure	8000 KN
Rated working pressure	800 T
Hot platen size	1370270052 mm
Working Layers	8, 10, 12
Layer Distance	100mm
Plunger Oil Cylinder	260mm*6 units
Work Stroke	1000 mm
Pressure resistance	≤ 25 MPa
Empty Load Closing Time	about 17 second
Low-pressure Pump Flow	100L/min
Allowed Pressure	≤ 5 MPa
Power	22 kw
High-Pressure Pump Flow	35 L/min
Board Unit Pressure	20 kgf/cm2
Power	7.5 kw
Max Board Size	1250x2500 mm
Machine Weight	about 40 Tons
Overall Size	3600x1400x4300 mm
Control System	PLC, auto hydraulic pump station
Top and Bottom Beam Height	900 mm. 1000 mm
Middle Movable Beam Height	400 mm
Steel Plate Thickness	35mm, 20mm, 12mm

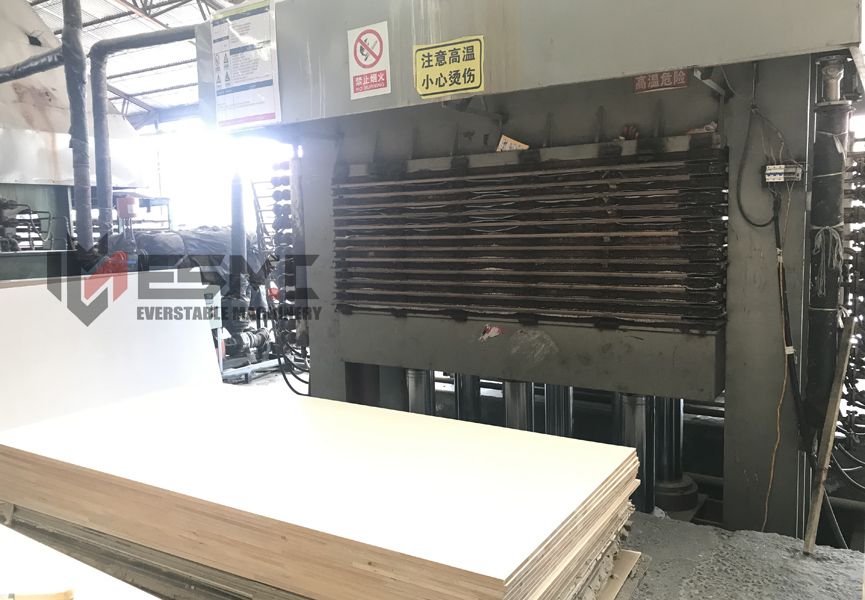

hot press 800T pressure.jpg

Advantages:

· High precision and stability in veneer and melamine film lamination press.

· Reduced energy consumption with double recycle heating recycle management features.

· Low maintenance requirements with high-quality components and accessories.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
