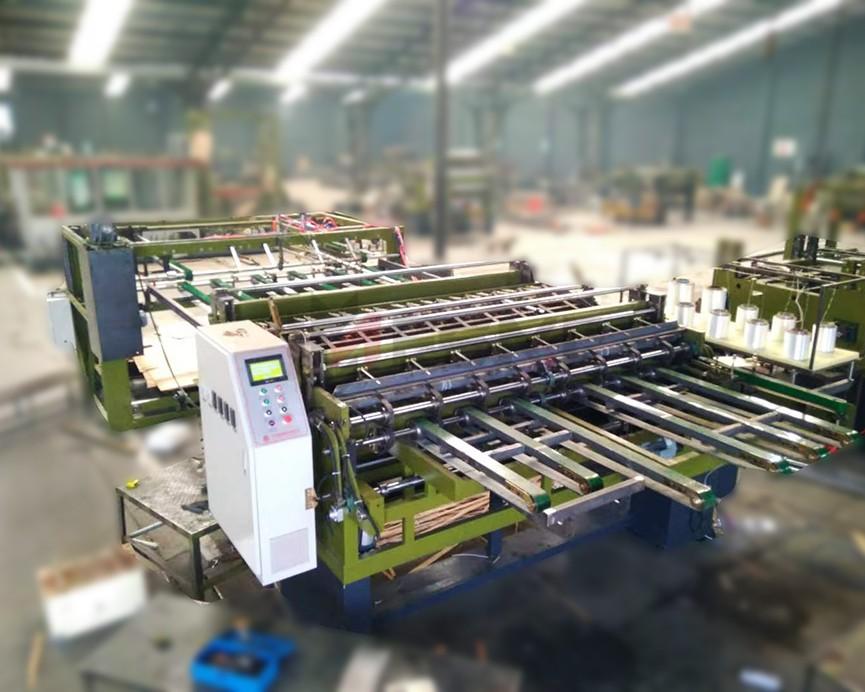

8ft plywood core compose machine for plywood production plant, horizontal CNC Veneer Core Builder good price

Specification
Machine Name: 8ft Plywood Core Composer Machine for Plywood Production
Model: BJ-9C-8
Jointing Veneer Size: 8x4 ft
Veneer Thickness: 1.2-3.6 mm
Work Speed: 0-35m/min
Work Capacity: 200 PCS/hr full veneer

The 8ft Horizontal CNC Veneer Core Composer is an advanced solution designed for plywood production plants that require precision assemble and quality veneers, efficiency, and durability. This machine is ideal for composing 8ft plywood cores, ensuring seamless veneer jointing and high-quality panel production. Its state-of-the-good features enhance plywood veneer production speed, improve accuracy

8ft Plywood Core Composer Machine for Plywood Production, China Linyi wood working machinery

Auto Veneer Core Builder Machine for Plywood Production

 Plywood core veneer making machine veneer composer.jpg

The 8ft Horizontal CNC Veneer Core Composer is an advanced solution designed for plywood production plants that require precision assemble and quality veneers, efficiency, and durability. This machine is ideal for composing 8ft plywood cores, ensuring seamless veneer jointing and high-quality panel production. Its state-of-the-good features enhance plywood veneer production speed, improve accuracy, and deliver consistent, professional wood products results.

- Precise Detection*: Equipped with an electronic veneer thickness detector, ensuring optimal cutting and jointing.

- Edge Gluing & Sizer Cutting: Hot melt glue and wire thread application ensures solid joint spots, preventing cracks after heating drying and further processing. The machine produces and cut sheets of standard sizes, such as 4'x8', 8x4’or 3'x6'.

- Efficient Conveying: Adjustable conveying speed from 10m/min to 35m/min, improving production rates compared to traditional methods.

- Advanced Waste Management: Precision rotary encoders and high-speed counters minimize veneer edges cutting waste, with a clipping width as small as 75-100mm.

- Synchronized Jointing: The front and rear jointing are perfectly synchronized to avoid overlapping, ensuring smooth, wavy veneer composition with minimum defects.

- Servo Motor Precision: Driven by Siemens servomotors for enhanced precision and durability, replacing outdated clutch brake drives.

- Easy Operation: The entire system is controlled via a DELTA PLC system, simplifying operations for a single operator, from veneer in feed to automatic complete veneer stacking.


Veneer Composing Performance after hot melt glue and thread jointing

composed veneer.jpg

4ft core veneer composer good peformance.jpg

Key Features and Advantages:


Pneumatic Shearing for Perfect Veneer Edging
The pneumatic front shear system automatically trims veneer edges, allowing for faster and more accurate composition, reducing manual effort and speeding up the entire process.

High-Precision Construction
Built with exceptional craftsmanship, this machine is engineered for high-quality output, ensuring durability and longevity in demanding production environments. It provides robust and precise performance for consistent veneer composition.

Automatic Alignment System
Equipped with an entry alignment system, the machine automatically adjusts and aligns the veneers before jointing, ensuring precise and flawless assembly. This significantly improves the accuracy and overall quality of the plywood core sheets.

Stacking and Discharge System
The automated stacking system ensures clean and tidy stacking of finished core veneers. The discharge process is streamlined, keeping production flow efficient and organized.

Premium Motors and Electrical Components
Powered by Siemens servo motors and Delta PLC controls, the machine guarantees precision veneer jointing with stable and reliable performance. These high-quality components provide long-term stability and reduce maintenance needs.

Adjustable Production Speed
The machine's adjustable conveying speed, ranging from 22m/min to 33m/min, increases production efficiency, allowing for greater flexibility based on specific production demands.

servo motor auto veneer core builder machine for plywood production .jpg

servo motor auto veneer core builder machine.jpg

veneer builder machine siemens motor.jpg

DELTA PLC for auto plywood core stitching machine.jpg

good price 4ft veneer composing machine.jpg

hot melt glue veneer compose machine.jpg


core veneer composer.jpg

Technical Parameters:

Notice:●standard ○ optional

Model :BJ-9C-8

Drive

Servo-type

L*W*H

13000mm*4000mm*2500mm

Structure

Integral steel plate laser cutting

Transmission speed

0-35m/minute adjustable

Working efficiency

200pcs/h

Jointing machine length(mm)

3600mm

Jointing machine width (mm)

3900mm

Jointing machine height (mm)

2500mm

Stacker length(mm)

4000mm

Stacker width(mm)

2200mm

Stacker height(mm)

2300mm

Max working width(mm)

2650mm

Max working length(mm)

1450mmadjustable

PLC computer module

Delta PLC

Total weight

8750kgs

Total power

23kw

Front driver

 Siemens servo motor 3.5kw

Rear driver

Siemens servo motor 5kw

Edge cutter driver

Motor+ CHAIN TAIL clutch brake

Front drive reducer

Newstart reducer

Rear drive reducer

Newstart reducer

Rotary actuator

FESTO(Germany)

Water cooling air condition

Electric lateral platform

Machine color

Put board Elevator-platform

Speed control

Finished panel Counter

Notice:


This machine significantly improves production efficiency and the quality of plywood panels by allowing flexible and customizable veneer sizes, making it an essential tool for modern plywood manufacturers.

More Features Description for Plywood Core Veneer Composer,veneer core builder:

PLC control,auto checking and working.only one worker need.

High precision composing into 4x8ft or other size needed.

With veneer sides edging cutting,keep the jointed veneer with no gaps.

Auto spreading the hot melted glue on the thread and cross link the veneers.Auto cooling. Make the finished long veneer core with pretty strength.

Continuously working.and cutting in size. Each veneer joints is different.

Strong weld frame structure.

Used high standard electric parts like Festo, Delta,Siemens.etc keep stable performance.

composing machine load container.jpg

veneer composing machine spare parts.jpg

- Good Veneer Thickness Process Range: Capable of handling veneers from 1.2 mm to 4mm.

- Precise Detection**: Equipped with an electronic veneer thickness detector, ensuring optimal cutting and jointing.

- Edge Gluing & Sizer Cutting: Hot melt glue and wire thread application ensures solid joint spots, preventing cracks after heating drying and further processing. The machine produces and cut sheets of standard sizes, such as 4'x8', 8'x4’or 3'x6'.

- Efficient Conveying: Adjustable conveying speed from 10m/min to 35m/min, improving production rates compared to traditional methods.

- Advanced Waste Management: Precision rotary encoders and high-speed counters minimize veneer edges cutting waste, with a clipping width as small as 75-100mm.

- Synchronized Jointing: The front and rear jointing are perfectly synchronized to avoid overlapping, ensuring smooth, wavy veneer composition with minimum defects.

- Servo Motor Precision: Driven by Siemens servomotors for enhanced precision and durability, replacing outdated clutch brake drives.

- Easy Operation: The entire system is controlled via a DELTA PLC system, simplifying operations for a single operator, from veneer in feed to automatic complete veneer stacking.



Why Choose Us?

At ESMC (Shandong Everstable Machinery) , we specialize in manufacturing high-quality plywood working machinery, including log debarker and rounding machine, veneer peeling machines, rotary peeling production line, veneer dryers, and plywood working machinery, like core composing machines, hot press, edge trimming machine,wide belt sanding machine.etc Our machines are engineered to improve efficiency, precision, and overall production quality. With a strong focus on after-sales service, we support our clients worldwide by offering expert guidance, spare parts support, and comprehensive maintenance services.

Located in Chinas wood-based panel production hub, ESMC serves the global woodworking industry, providing reliable solutions to meet modern plywood production demands.


FAQ?

1. Who are we?

ESMC (Shandong Everstable Machinery) focuses on veneer and plywood machinery manufacturing,exporting, offering tailored full set solutions to the woodworking industry.

2. How can we guarantee quality?

We provide pre-production drawings and full term quality control,conduct final inspections before shipment to ensure all machinery meets the highest standards.

3. What can you buy from us?

Our products range includes veneer peeling machines, plywood hot press machines, veneer composing machines, veneer dryer machines and covers other wood based panel making machines.

4. Why should you choose us?

With years of experience, cutting-edge technology, and a commitment to customer satisfaction, we help over 180 clients from south America, Europe, South Asia, Africa.etc over produce high-quality plywood efficiently and full term service.

5.What services do we provide?

We offer flexible delivery terms and payment options, and multilingual support, production guide, machinery after sale support, ensuring seamless service no matter where you are located.
