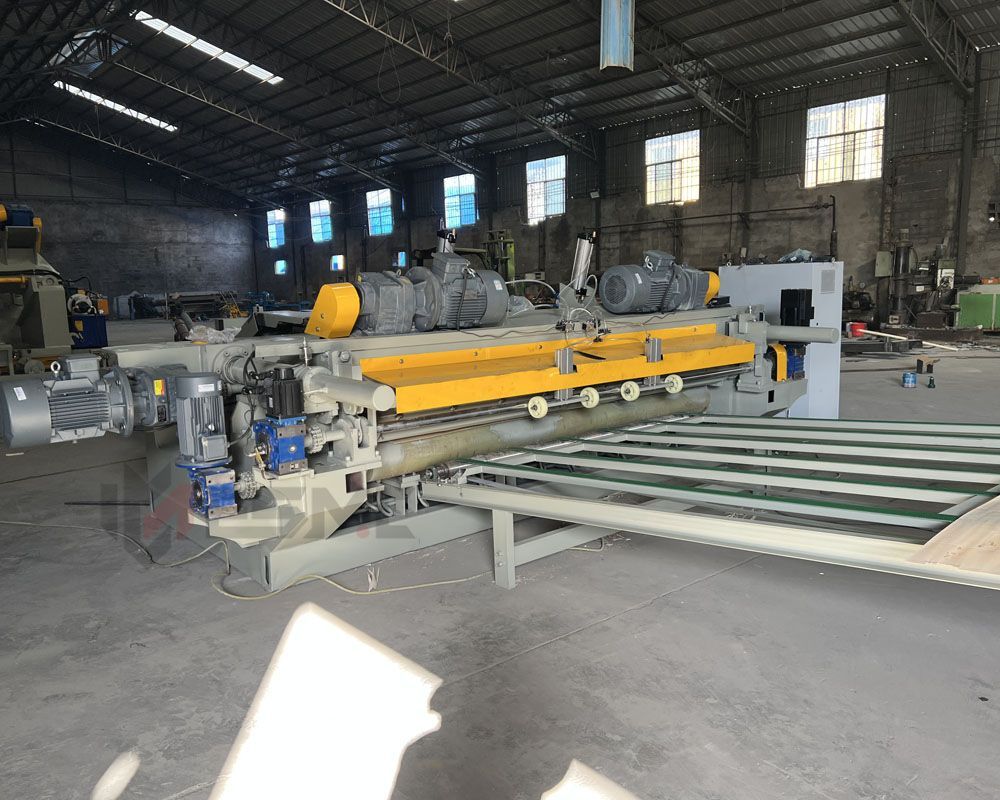

8ft CNC Rotary Spindleless Veneer Peeling Machine

Specification
Log diamter： 500 mm
Veneer thickness： 0.3-4 mm
Speed： 30-100 m/min
Knife carriage motor： 15 kw
Double roll motor： 11kw*2
Single roll motor： 11kw*2
Knife size： 2700x180x16 mm
Feeding lead screw diameter： 90 mm

For both hard and soft logs peeling into smooth and accurate thickness veneers. This heavy duty Veneer peeler series for hard logs is spindle less type log peeling lathe machine. By PLC mart control , the operating is simple and easy to learn. Basic data like peeling veneer thickness is convenient adjust on the touch screen.

8ft heavyd duty auoto knife gap adjusting Veneer Spindless Lathe
Automatic spindless veneer peeling machine plays an important roll in plywood veneer working production line. The logs rotary cutting by the single and double-rollers into precise smooth veneers. Taking with PLC smart control and accurate servo motor system. it peeling the different logs into setting thickness wood veneers with a same speed and continually changing pressure keep good quality.This heavy duty high speed spindle less peeling lathe. With mature technique form Linyi plywood making machine center. stable peformanc and high quality, improve the veneer peeling accuracy and make more smooth surface veneers. Model : ESM-2600SXQ.

Machine Details:

The speed is adjustable suits different hard level and density logs. Because the pressure is matched according to log diameter to keep the stable performance.

With high speed peeling and cutting the veneers together. Save costs and lead to big output of veneers.

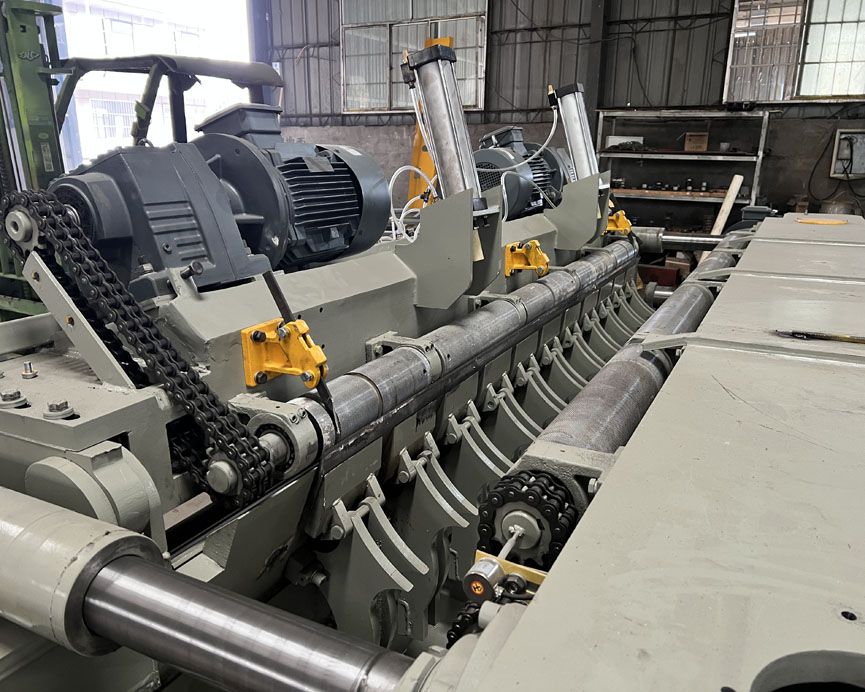

Use bigger leading screws and strengthen guide rails to keep the smooth working and long term working. Strong structure design and the hard teeth surface gear box make the machine can peeling both hard and soft logs. The birch, eucalyptus, poplar, pine logs.etc all can well peeled into need veneers.

Using touch screen makes the operator easy working and setting. Also, it saves cost and increase production efficiency.

The knife holding system use quality hydraulic knife clamping, make the knife change and grinding more simple, save the changing time.

Features

A.Suits both hard and soft logs peeling in big and small diameter, with a adjustable speed.even the log level not good can well produce the quality veneers.
B. Good peeling thickness accuracy of the veneer sheet.

C. With high speed auto peeling. The peeling pressure is good.lead to quality veneer.

D. Match with semi-auto or full auto veneer peeling production line.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
