800T Melamine-laminated Hot Press Machine for plywood and block board making

Specification
MODEL： ESBY214-8/4-10
Pressure： 600T/800T/1000T
Hot Platen Size： 1370*2700*52 mm
Main Frame Steel Plate Thickness： 40,20 mm
Oil Cylinder Size： Ø260 ,6 units
Power： 29.5 kw

Our Melamine Paper Hot Press Machine is designed with a heavy duty structure frame, welded from high-quality steel plate to ensure high stability and reduce deformation.

The smart control system is designed to provide precise press pressure application. It equipped a low noise quick-closing hydraulic pump station with a large flow rate, which allows for rapid pressurization and enhances production efficiency.

The machine is easy to operate, reliable, and incorporates automatic temperature and time controls and double in and out hot platen heating recycle system to ensure uniform temperature distribution across the press plates. The dual-entry and exit steam and thermal oil piping system further ensures consistent laminating pressing performance. This machine is very suit the decoration film face pressing of plywood, block board, and melamine-laminated panels.

widely used in the lamination of melamine paper onto plywood, MDF, and other engineered wood products, ensuring top-quality surface finishes.

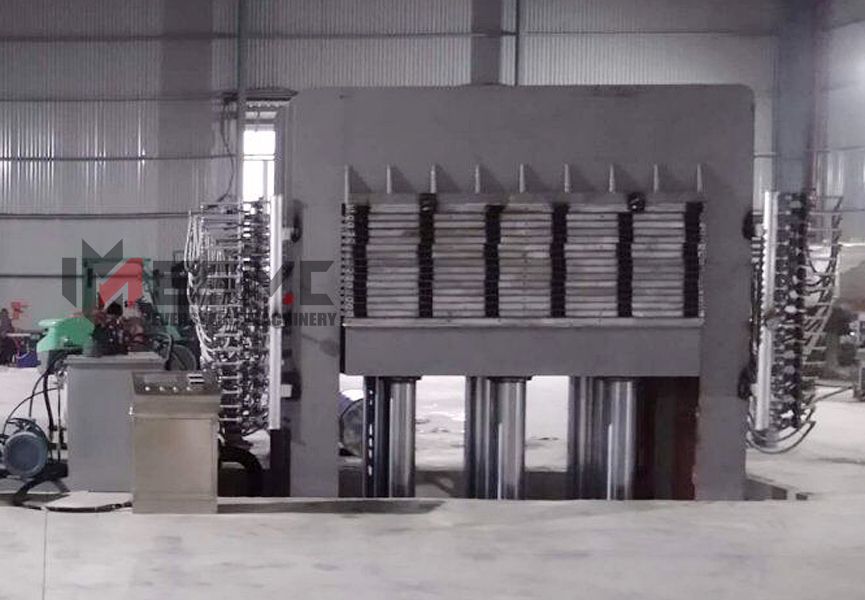

plywood hot press 800T.jpg

Model	ESBY214-8/4-10
Norminal Pressure	8000 KN
Rated working pressure	800 T
Hot platen size	1370270052 mm
Plunger Oil Cylinder	260mm*6 units
Work Stroke	1000 mm
Pressure resistance	≤ 25 MPa
Empty Load Closing Time	about 17 second
Low-pressure Pump Flow	100L/min
Allowed Pressure	≤ 5 MPa
Power	22 kw
High-Pressure Pump Flow	35 L/min
Board Unit Pressure	20 kgf/cm2
Power	7.5 kw
Max Board Size	1250x2500 mm
Machine Weight	about 40 Tons
Overall Size	3600x1400x4300 mm
Control System	PLC, auto hydraulic pump station
Top and Bottom Beam Height	900 mm. 1000 mm
Middle Movable Beam Height	400 mm
Steel Plate Thickness	35mm, 20mm, 12mm

800 HOT PRESS.jpg

Both these machines offer precise control and superior performance, ensuring efficient production of high-quality melamine-laminated panels, and all kinds film faced plywood, block boards.

Please feel free to contact for the hot press, cold press, laminating hot press machine. We will try best make the good and stable veneer plywoodworking machine to you. And offer the full term after sale service. ESMC appreciate your support and trust.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
