Machine Name: L-Type Veneer Finger Jointing Composer Machine for Plywood Production
Model: LBJ-9C-4
Jointing Veneer Size: 8x4 ft
Veneer Thickness: 1.2-3.6 mm
Work Speed: 0-35m/min
Work Capacity: 180-200 PCS/hr full veneer

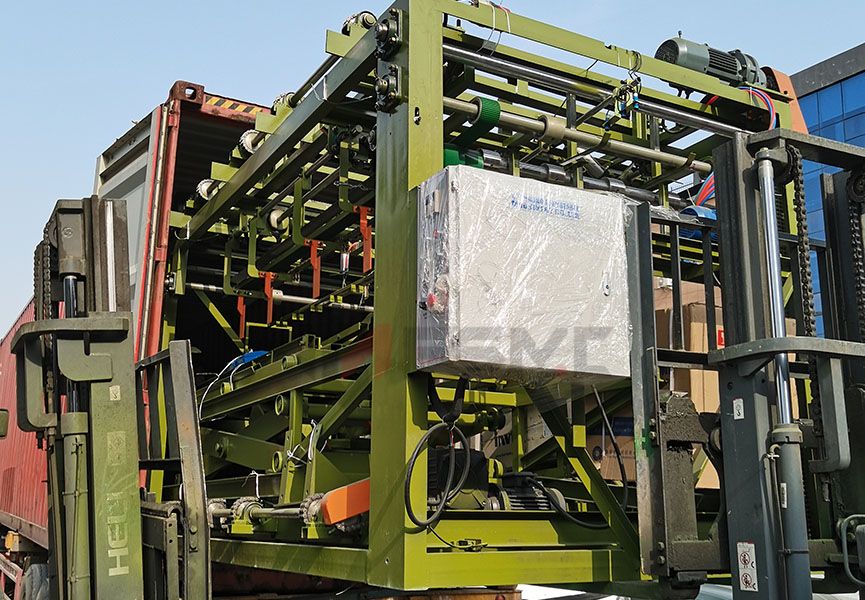

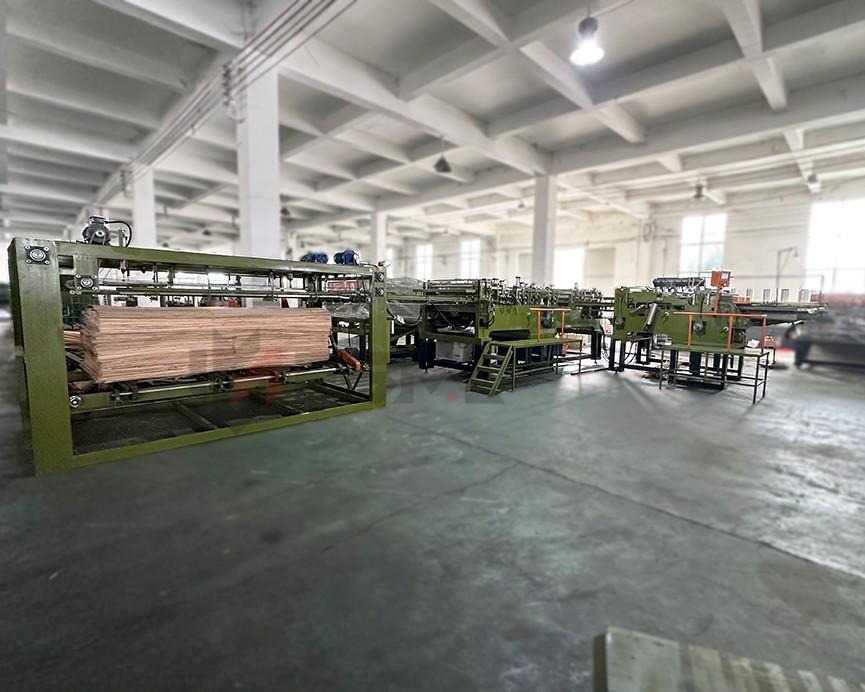

4x8ft L-Type Veneer Finger Jointing Composer Machine for Plywood Production
The *4x8ft L-Type Veneer Finger Jointing Composer Machine* is an advanced solution for plywood core composing. Designed for efficiency and precision, this automatic plywood core jointer combines horizontal and vertical veneer jointing, ensuring superior quality and strength for core veneers. This machine helps improve the quality of the plywood panels by seamlessly joining uneven and irregular veneers into high-strength sheets.
Key Features and Advantages:
1. Pneumatic Shearing for Faster Composition
The front automatic pneumatic shearing system trims veneer edges, allowing for quicker and more precise jointing, reducing manual intervention.

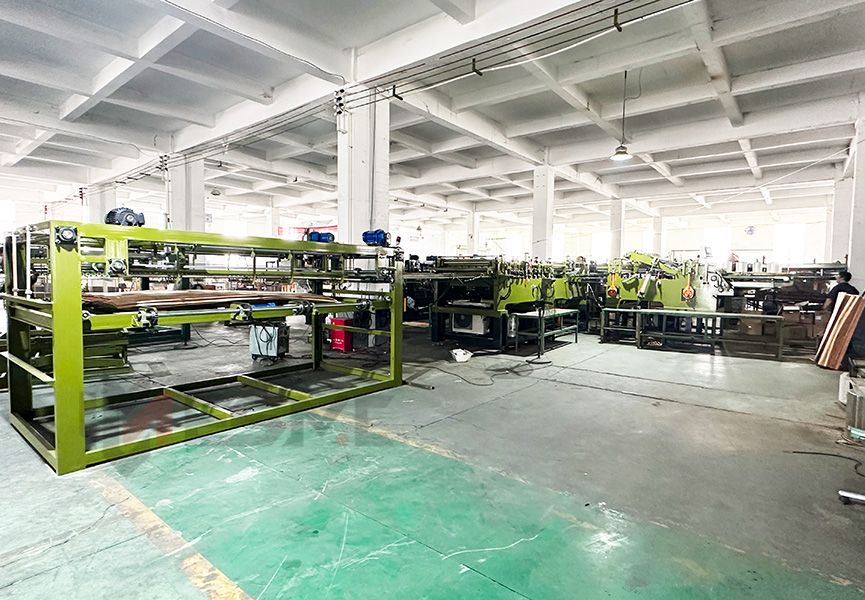

2. Stable Structure & Durable Design
Built with a solid structure and using high-quality materials, the machine is robust, durable, and designed to provide high-precision results even under heavy workloads.
3. Advanced Alignment and Correction System
The automatic alignment system at the infeed ensures high veneer jointing precision, automatically correcting and adjusting core veneers for consistent quality. The stacking system ensures clean and orderly stacking of completed veneer sheets.
4. Innovative Finger Jointing Technology

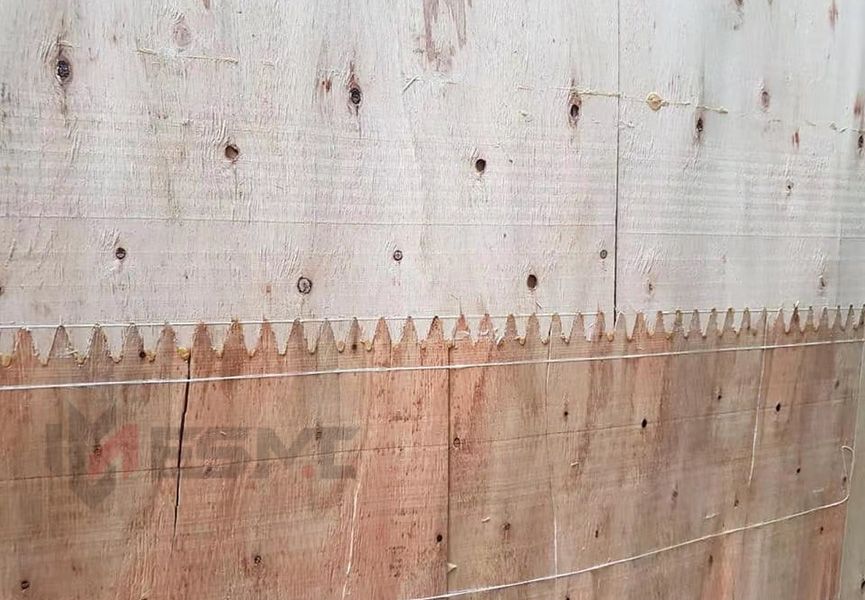

The machine uses new technology and materials for finger jointing knives, ensuring more uniform veneer teeth for a smoother and higher-quality joint. This feature significantly improves the panel's structural integrity and quality.

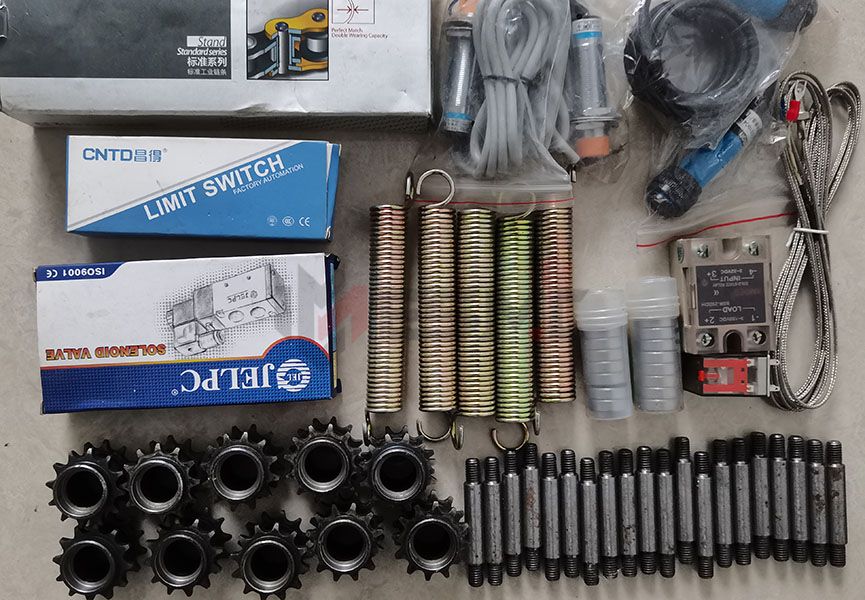

5. High-Quality Motors & Electronics

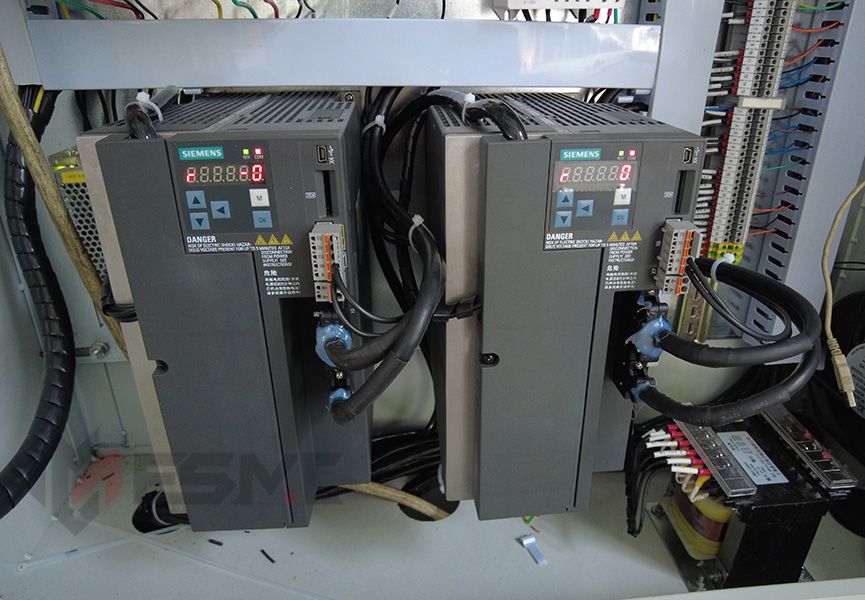

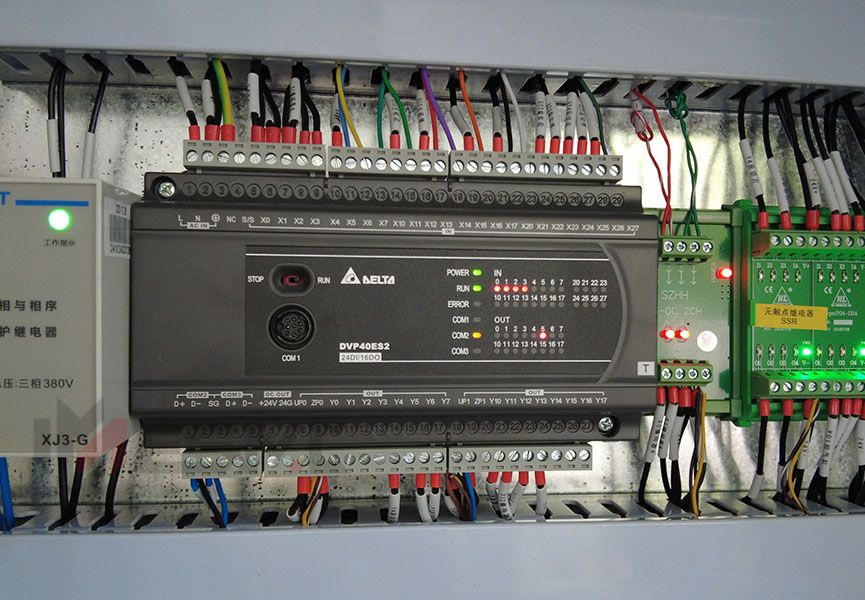

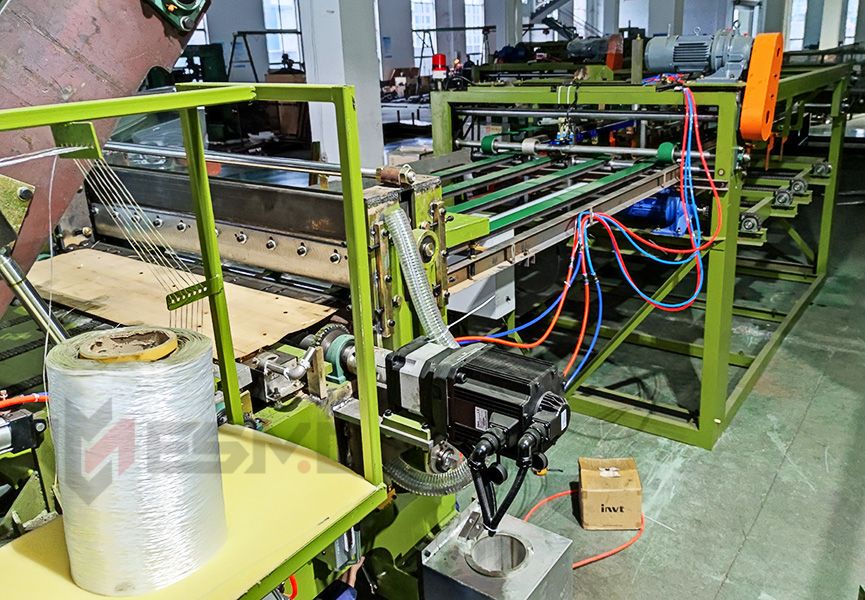

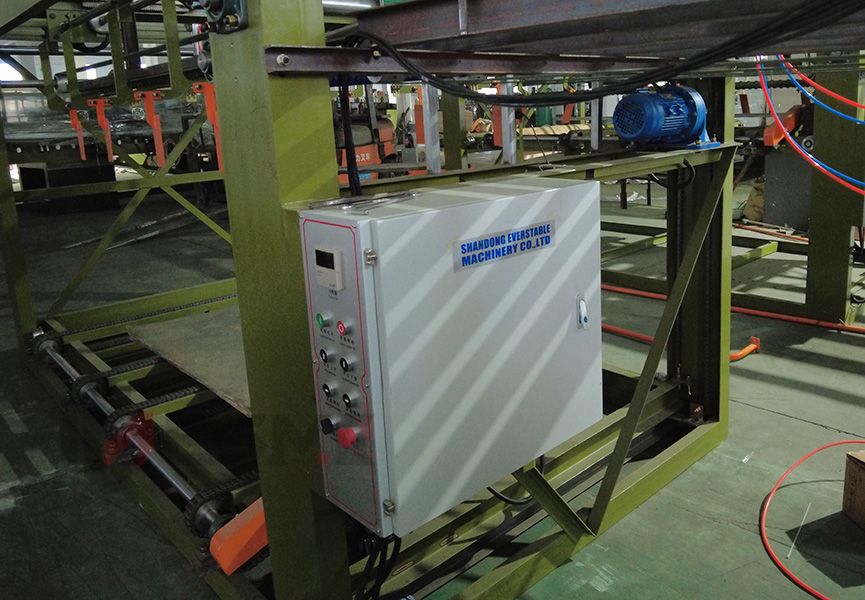

Equipped with Siemens servo drives and Delta PLC automatic controls, the machine ensures precise veneer jointing and stable long-term performance. The system is designed for reliable operation with minimal maintenance.
6. Efficient Waste Removal System
An advanced cleaning system effectively removes debris and waste from the veneer surface, maintaining a clean working environment and ensuring superior veneer composition.

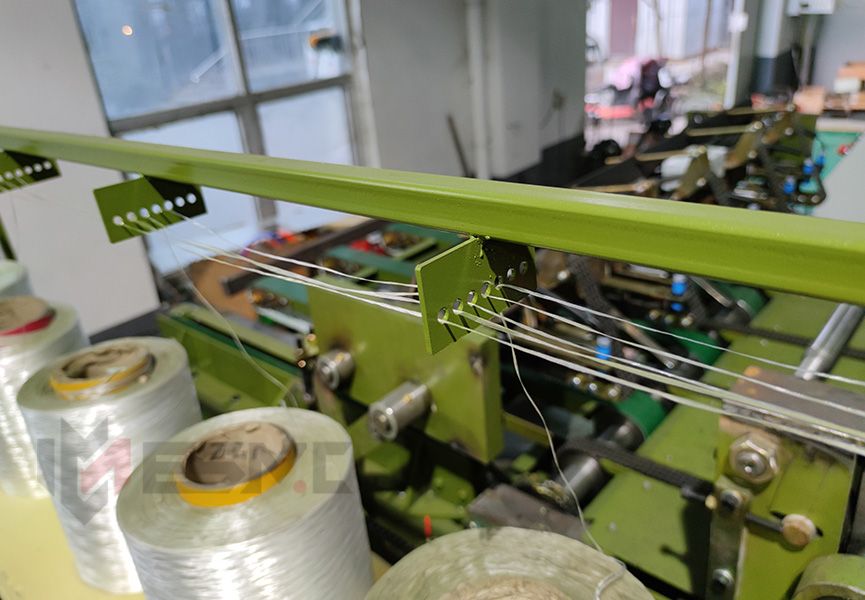

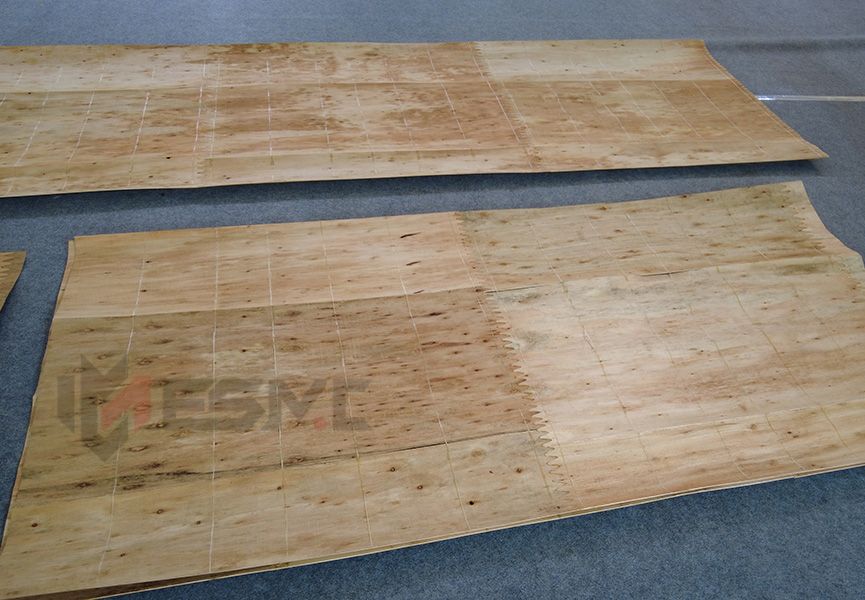

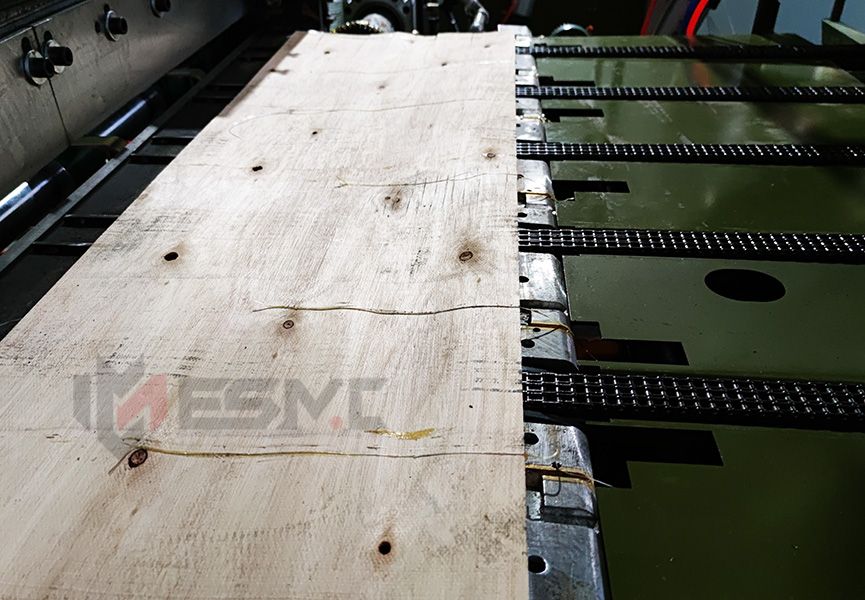

Veneer Composing Performance after hot melt glue and thread jointing
Product | Long Core Composer |
Drive | Servo Motor |
Structure | Whole Steel Plate Laser Cutting |
Transfer Speed | 0-35m /Minute (adjustable) |
Working Efficiency | 180-200pcs/h(finished jointing veneer) |
Covered Area | 36㎡ |
Transverse Core Composer Length | 4000mm |
Transverse Core Composer Width | 2600mm |
Transverse Core Composer Height | 2500mm |
Vertical Core Composer Length | 5000mm |
Vertical Core Composer Width | 2600mm |
Vertical Core Composer Height | 3000mm |
Stacker Length | 4000mm |
Stacker Width | 2200mm |
Stacker Height | 2300mm |
Total Weight | 11000kg |
PLC | Taiwan Delta PLC |
Drive | INVT Servo Motor 3KW X 4 ; 1.5KWX1 |
Transverse Core Composer Edging Cutting | Motor + Chain Tail Clutch Brake |
Vertical Core Composer Edging Cutting | Converter |
Transverse Core Composer Front Reducer | NEWSTART Reducer |
Transverse Core Composer Rear Reducer | NEWSTART Reducer |
Rotary Cylinder | Germany Festo X 2 |
Total Power | 35KW |
Air Condition(1.5P) | 2 |
Working Desk | 2 |
Lifting Platform | 1 |
External Stacker | 1 |
Electric lateral platform | Standard |
Feeding Veneer Corrector | Standard |
Machine Color | Selectable |
Elevator-platform | Standard |
Speed control | Standard |
Finished panel Counter | Standard |
Notice: Our company is responsible for the installation, debugging(Customers are responsible for round-trip tickets and accommodation), providing the perennial after-sales service. |

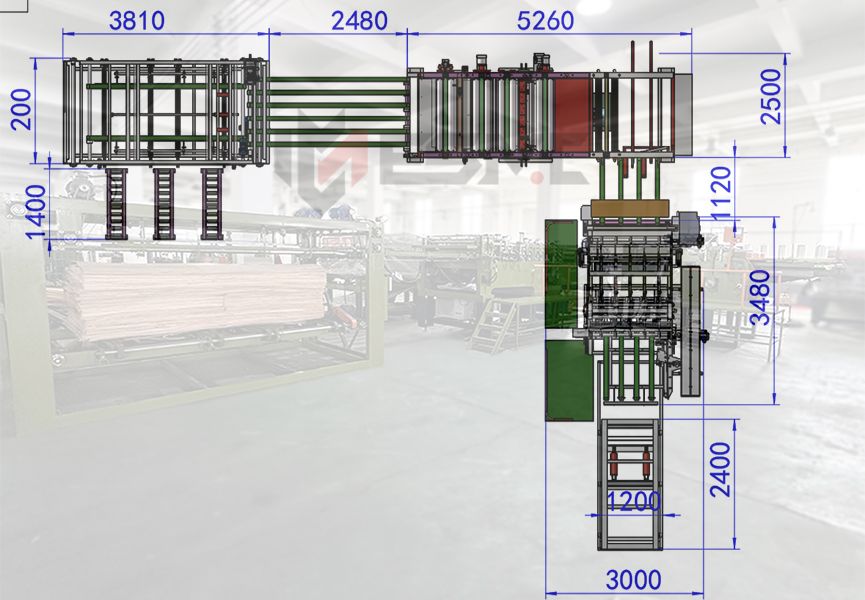

Working Principle
The 4x8ft L-Type Veneer Finger Jointing Composer Machine* is designed to compose core veneers that vary in length and thickness into full sheets. The process includes veneer detection, trimming, edge gluing, composing, and cutting, followed by precise finger jointing for vertical assembly.
After veneer rotary peeling ,cutting and drying, the wood veneer with different length, uneven surface, different thickness from 1.2-3.6mm is processed and first composed into 4*4 feet by horizontal core veneer composer, then entered from two sides of the machine through the full-automatic feeding and edge cutting,finger teeth making,gluing, finger teeth alignment, pressing,cooling, size cutting and stacking, these process steps are completed automatically. After the whole auto process, the veneer is composed into the whole long veneer as required size(8*4ft).
1. *Feeding Delivery: Core veneers are fed into the machine.
2. *Veneer Correction: Automatic system aligns and corrects veneer position.
3. *Edge Cutting: Veneer edges are trimmed for precise composition.
4. *Horizontal Composition: Veneers are composed horizontally and cut into 4x4ft sheets.
5. *L-Type Direction Change: Veneers are rotated for vertical finger jointing.
6. *Vertical Finger Jointing: Veneer edges are finger jointed for stronger assembly.
7. *Final Cutting & Stacking: The sheets are cut into 4x8ft size and neatly stacked for use in plywood assembly and pressing.
This fully automatic process is time-efficient, requiring only one operator to manage the entire operation, thus increasing productivity and reducing labor costs.
