Specification
Machine Name: 4ft Automatic Veneer Stitching Machine for Plywood Production
Model: BJ-9C
Jointing Veneer Size: 4x8 ft
Veneer Thickness: 1.2-3.6 mm
Work Speed: 0-35m/min
Work Capacity: 300 PCS/hr full veneer

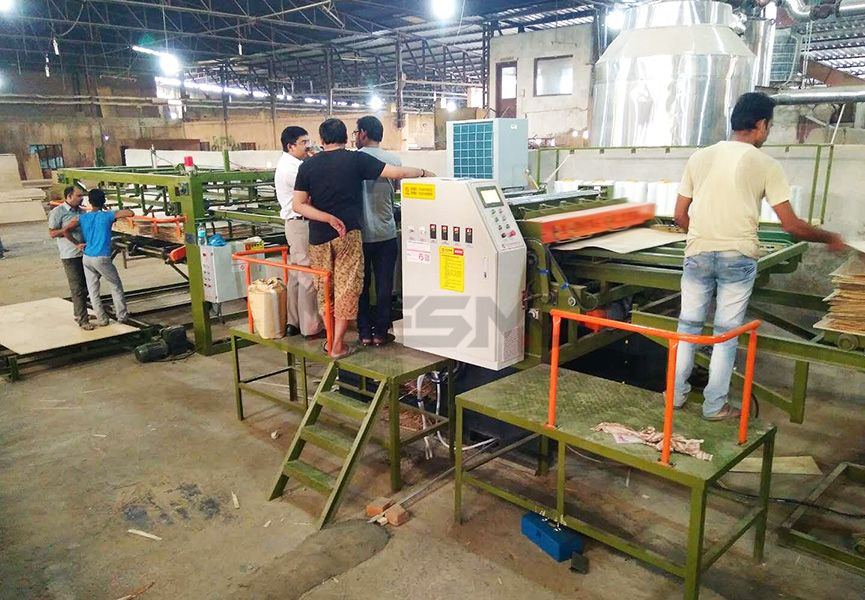

4ft Automatic Veneer Stitching Machine for Plywood Production
The 4ft*8ft Automatic Veneer Stitching Machine* is designed to efficiently join core veneers for plywood production. This machine offers high-quality veneer composing and improves the efficiency of the plywood manufacturing process by automatically joining veneers with glue and thread. Whether you are producing furniture plywood, construction plywood, block boards, or wooden floorboards, this machine ensures strong, precise joints that save time and enhance production quality.

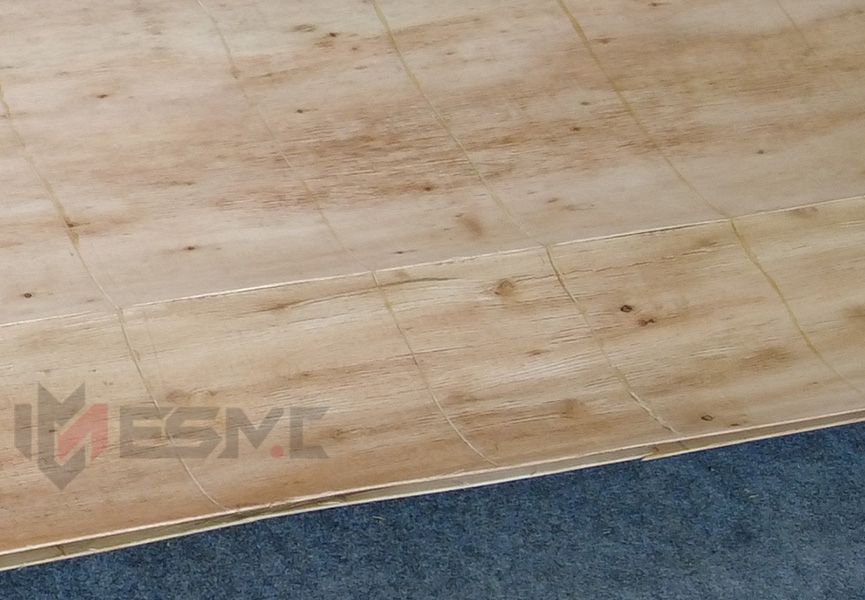

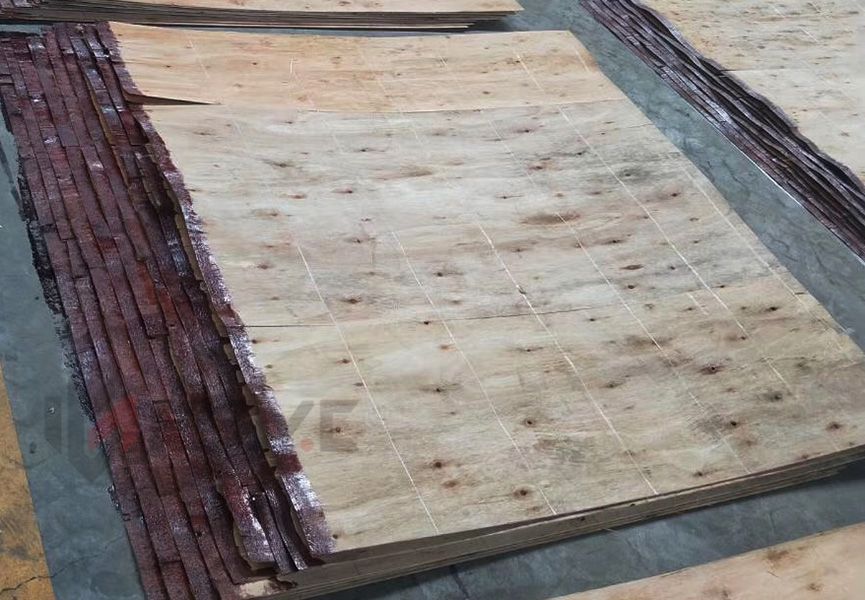

Veneer Composing Performance after hot melt glue and thread jointing
Key Applications:
- Furniture Plywood
- Construction Plywood
- Block Boards
- Wooden Floorboard Material
By horizontally combining veneers with glue and thread, the *4x8ft Veneer Jointing Machine* creates stronger, higher-quality core veneers, reducing the need for manual repairs to face and back veneers. This improvement leads to a more efficient plywood assembly process and superior output, significantly enhancing production quality compared to traditional methods.
Main Features:
1. PLC Control for Automation
The machine operates automatically, with all processes—from edge cutting to jointing and stacking—controlled by a PLC system. Only one worker is required, ensuring labor efficiency and ease of use.
2. High Precision Veneer Composition
The machine composes core veneers into sizes such as 4x8ft, with optional custom sizes available. The edge-cutting feature ensures that the jointed veneers have no gaps, producing stronger and more uniform panels.
3. Advanced Glue and Thread Jointing
The machine automatically spreads hot melt glue onto the thread, cross-linking the veneers for improved strength and durability. This feature makes the jointed core veneers capable of handling more stress, ideal for high-quality plywood production.
4. Continuous Operation and Auto Cooling
The machine runs continuously, cutting veneers to size and ensuring each veneer joint is secure. The auto cooling feature enhances the strength of the jointed core, making it ready for further processing.
5. High-Quality Components
Equipped with top-tier components like Festo, Delta, and Siemens, this machine ensures stable, reliable performance over long-term use. The robust welded frame structure adds to the durability and stability of the machine during operation.
Efficient Veneer Stitching Process:
1. Veneer Detection and Edge Cutting: The machine detects the width, thickness, and cavities in the veneer panels, trimming them to the required size.
2. Glue and Thread Jointing: Core veneers are joined horizontally using glue and thread, ensuring a strong bond and no gaps between sheets.

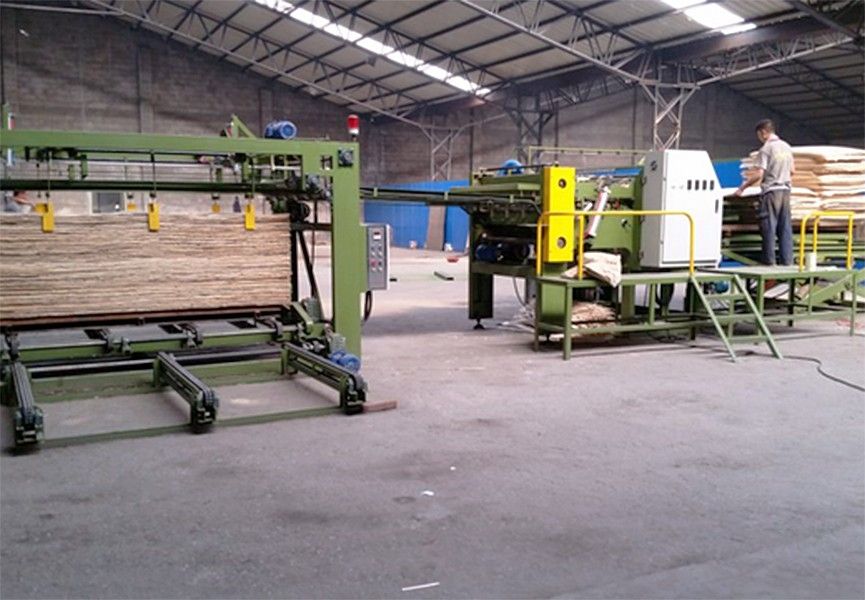

3. Automatic Stacking: After composing the veneer, the sheets are automatically stacked, ready for the next stage in the plywood production line.
4. Customized Panel Sizes: The machine can compose and cut veneers into different sizes as needed, allowing flexibility in production.
With the ability to handle panels ranging from 1.2mm to 3.6mm in thickness, this veneer stitching machine is ideal for producing high-strength core veneers for various plywood applications. It significantly reduces the manual labor involved, increases production speed, and ensures consistent veneer quality.
Technical Parameters:
●standard ○ optional | Model :BJ-9C |
Driver | Servo-type |
L*W*H | 12000*5000*2500mm |
Structure | Integral steel plate laser cutting |
Transmission speed | 0-35m/minute adjustable |
Working efficiency | 300pcs/h |
Composing machine length(mm) | 3600mm |
Composing machine height(mm) | 2500mm |
Composing machine width(mm) | 2600mm |
Stacker length(mm) | 4000mm |
Stacker height (mm) | 2500mm |
Stacker width (mm) | 2200mm |
PLC computer module | Delta PLC(Tai wan) |
Total weight | 6800kg |
Total power | 17kw |
Front driver | Siemens servo motor 3.5kw |
Rear driver | Siemens servo motor 3.5kw |
Edge cutter driver | Motor + CHAIN TAIL clutch brake(Tai wan) |
Front drive reducer | Newstart reducer 8/1(CHINA) |
Rear drive reducer | Newstart reducer 8/1 (CHINA) |
Rotary actuator | FESTO(Germany) |
Automatic core veneer corrector | ● |
Water cooling air condition | ● |
Electric lateral platform | ● |
4*4-4*8 electric conversion | ● |
Machine color | ○ |
Elevator-platform | ● |
Speed control | ● |
Finished panel Counter | ● |
Notice: Our company is responsible for the installation, debugging(Customers are responsible for round-trip tickets and accommodation), providing the perennial after-sales service. |
This machine significantly improves production efficiency and the quality of plywood panels by allowing flexible and customizable veneer sizes, making it an essential tool for modern plywood manufacturers.
More Features Description for Plywood Core Veneer Composer,veneer core builder:
PLC control,auto checking and working.only one worker need.
High precision composing into 4x8ft or other size needed.
With veneer sides edging cutting,keep the jointed veneer with no gaps.
Auto spreading the hot melted glue on the thread and cross link the veneers.Auto cooling. Make the finished long veneer core with pretty strength.
Continuously working.and cutting in size. Each veneer joints is different.
Strong weld frame structure.
Used high standard electric parts like Festo, Delta,Siemens.etc keep stable performance.

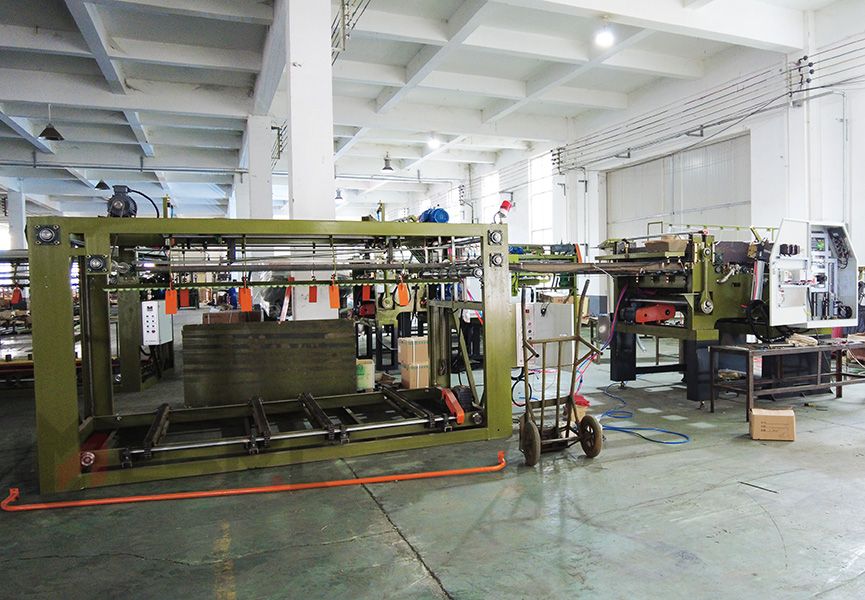

Delivery &Container Loading for automatic veneer stitching machine, the vneer core composer.
Why Choose Our Veneer Stitching Machine?
At ESMC (Shandong Everstable Machinery), we are dedicated to producing high-quality veneer working and plywood machinery. Our *4x8ft Automatic Veneer Stitching Machine* represents a combination of precision, efficiency, and durability, helping manufacturers improve their plywood production process. We offer comprehensive after-sales support and spare parts supply to ensure your machine operates at its best.
For a reliable, cost-effective solution to enhance your plywood production, choose the *4ft Automatic Veneer Stitching Machine*.
FAQ?
1. Who are we?
ESMC (Shandong Everstable Machinery) focuses on veneer and plywood machinery manufacturing,exporting, offering tailored full set solutions to the woodworking industry.
2. How can we guarantee quality?
We provide pre-production drawings and full term quality control,conduct final inspections before shipment to ensure all machinery meets the highest standards.
3. What can you buy from us?
Our products range includes veneer peeling machines, plywood hot press machines, veneer composing machines, veneer dryer machines and covers other wood based panel making machines.
4. Why should you choose us?
With years of experience, cutting-edge technology, and a commitment to customer satisfaction, we help over 180 clients from south America, Europe, South Asia, Africa.etc over produce high-quality plywood efficiently and full term service.
5.What services do we provide?
We offer flexible delivery terms and payment options, and multilingual support, production guide, machinery after sale support, ensuring seamless service no matter where you are located.
