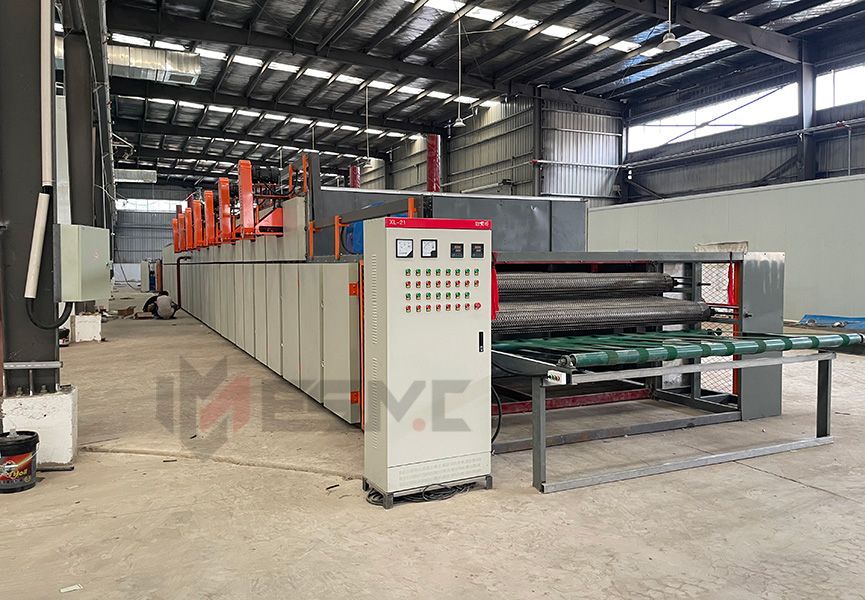

2 decks Steel mesh belt veneer drying machine,Industrial mesh veneer drying solutions

Specification
Model： HG-MB-30
Working layer： 2-4 DECKS
Working width： 2600 mm
Drying room length： 28-46 m
Cooling length： 6 m
Working speed： 10-30 m/min
Drying temperature： 80-140 ℃
Drying capacity： 2.5-5 m3/h
Veneer thickness suggested： 0.2-3mm
Heating method： steam or thermal oil boiler

Specialized solution designed for efficiently drying face and core veneers used in plywood production. Suiting peeled veneer and the sliced decorative veneers.utilizes a mesh-type drying system, which allows for uniform drying of the veneers while maintaining their quality.

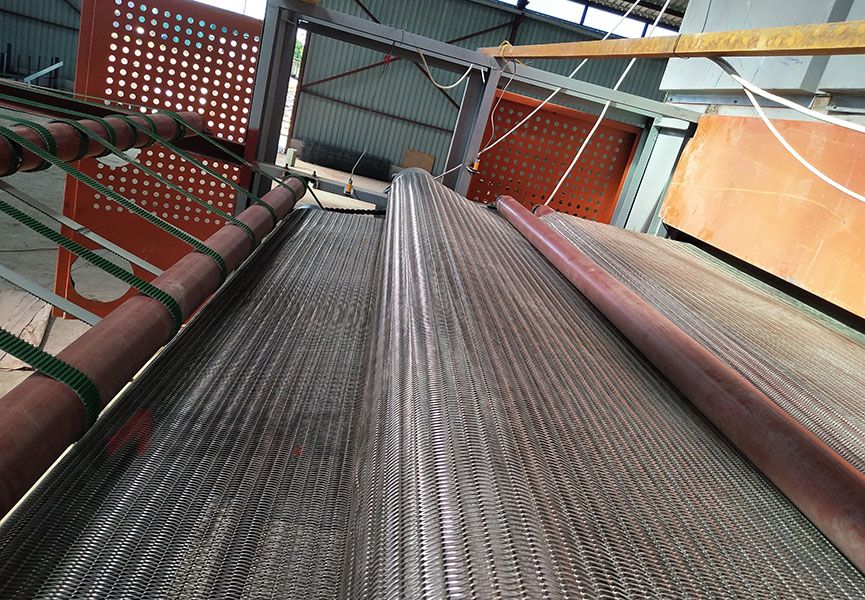

Use surface well treatment steel or stainless steel mesh belts material to transfer veneers and drying. Keep veneers very clean surface and well dried to needing moisture.Keep its good quality,clean and smooth surface for decorative veneer or plywood making using.

Heating can be supplied by the steam or thermal oil boilers or inbuilt furnace stove. The natural face veneer suggest 0.5-4 mm. Best performance is 0.5 mm-2mm. (for thicker core suggest the roller transfer type)If all for the thick veneer core over 1.7-3mm, suggest use the roller type veneer drying line, the veneer surface will be more flat with good quality and more efficient.

Main Functions and the Key Features:

Bigger high power heating blowing draught fan, stable and big wind output.

Steel and aluminium expanded metal heating radiator with large heat dissipation area. The big amount spraying hot air can uniformly working on veneer surface gain pretty good drying effect.

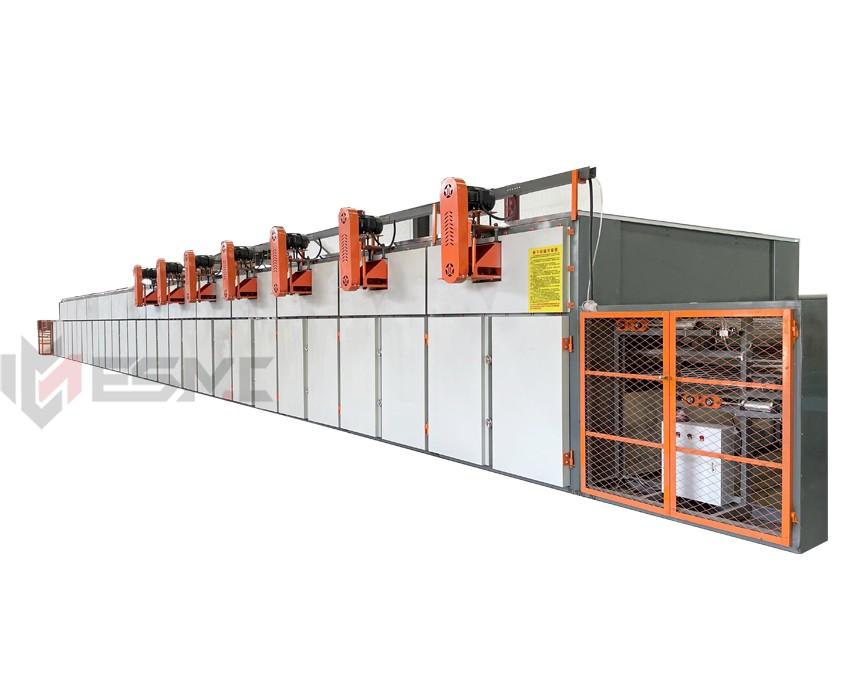

The equipped draught fan installed on the 2 sides of drying room.Keep the veneer moisture consistently and arrive best results.

Use stronger steel plate structure frame and thermal insulation material. Keep good quality for long time working. And try best save your fuel costs for heating.

Technical Parameters

MODEL	HG-MB30-2	REMARKS
Working width	2600 mm
Working layers	2decks	2-4 customize
Heating room	32 m	2mx*16 sections
Cooling area	4 m	2m*2 sections
Veneer feeding length	5 m
Veneer transfer out	6 m
Heating air blowing motor	7.5 kw*16	120 kw
Cooling motor	3 kw*2	6 kw
Transfer motor	4 kw*2	8 kw
Transfer speed	1-30 m/min
Heating medium	steam or thermal boiler	2.0 million kcal
Drying temperature	80-140 ℃
Veneer drying thickness	0.3-3 mm
Initial veneer moisture	below 60%
Final veneer moisture	10±2%

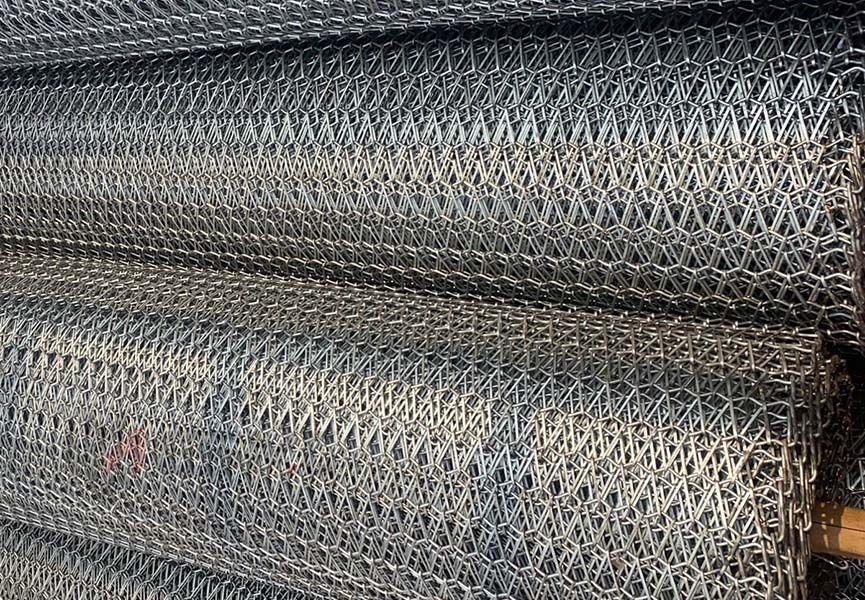

Mesh belt material	galvanized steel mesh	or stainless steel mesh
Drying capacity	2-3 m³/h
Structure frame	Q235,4.7 mm steel plate

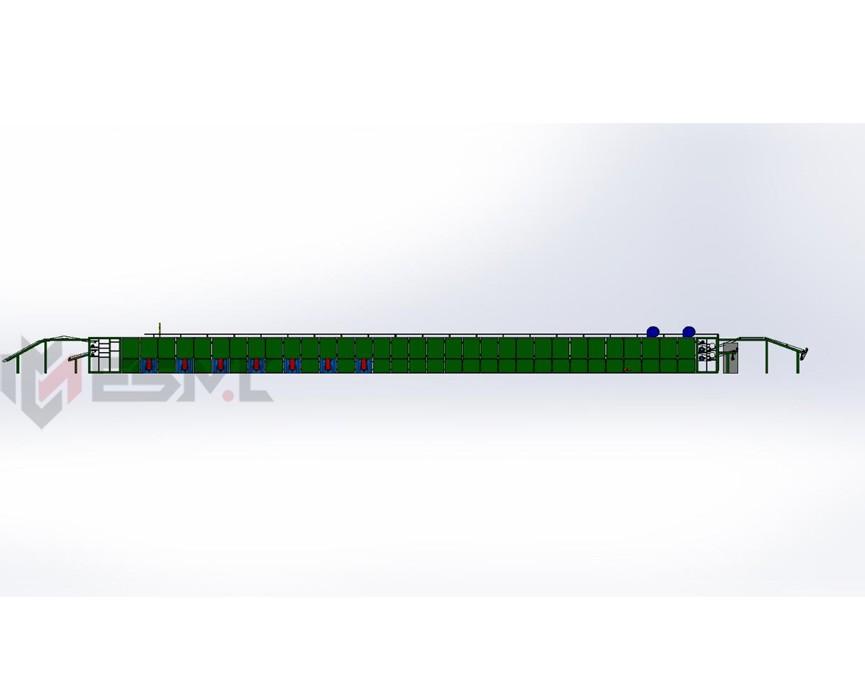

Overal Size	504.32.3 m	customizing
Weight	about 45 T

More Details Expansion :

Mesh-Type Drying: The drying line features a mesh conveyor system that ensures consistent airflow and heat distribution, resulting in thorough and even drying of the core veneers.

High Efficiency: With advanced drying technology, our drying line offers high efficiency, allowing for quick and efficient drying of core veneers, thereby optimizing production processes.

Customizable Configuration: The drying line can be customized to meet specific production requirements, including varying capacities and drying speeds, ensuring flexibility to adapt to different production needs.

Superior Quality: By utilizing precise temperature and humidity control, our drying line helps maintain the integrity of the core veneers, resulting in high-quality plywood products.

Cost-Effective Solution: Our drying line is designed for energy efficiency and low maintenance, offering a cost-effective solution for plywood manufacturers.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
