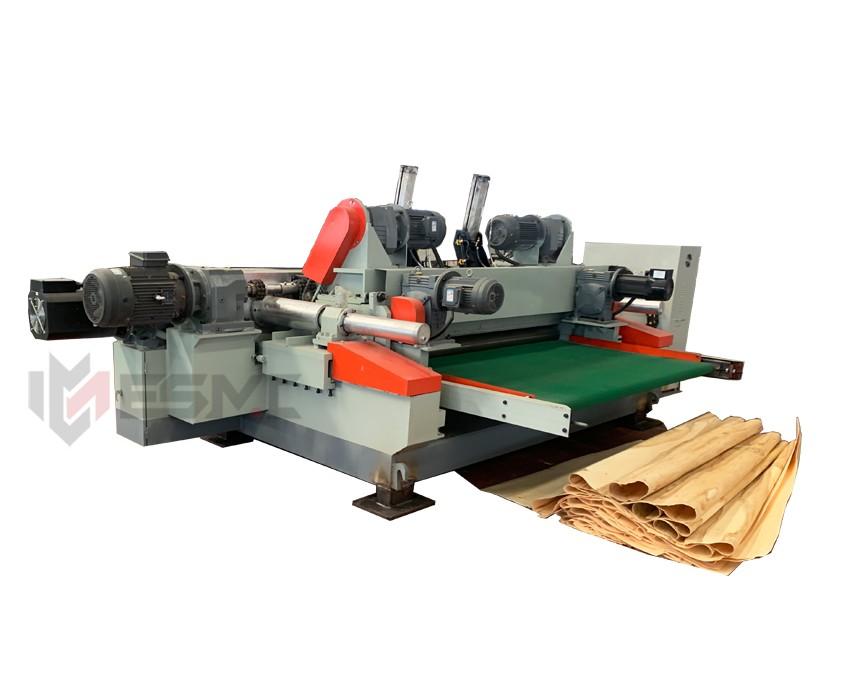

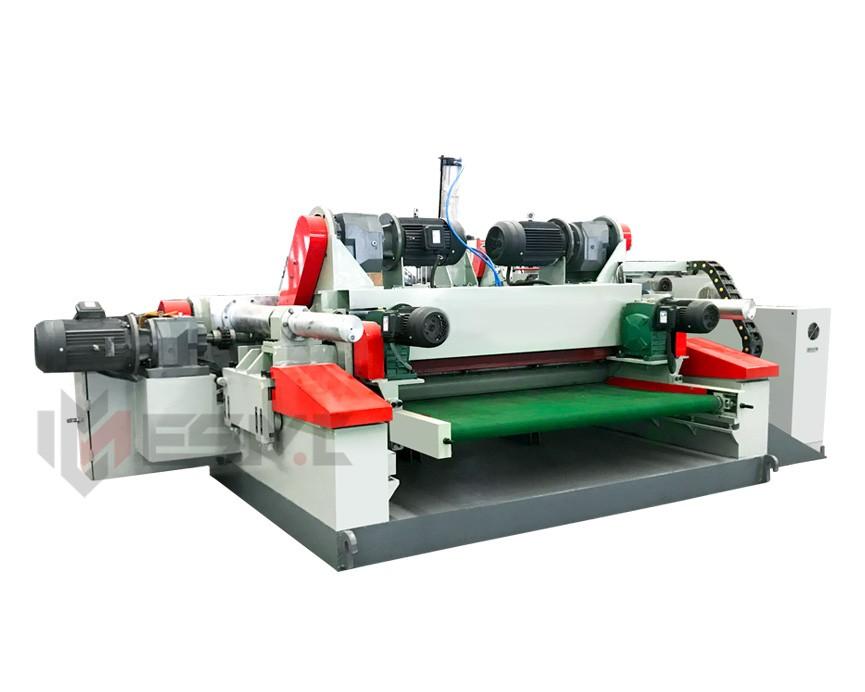

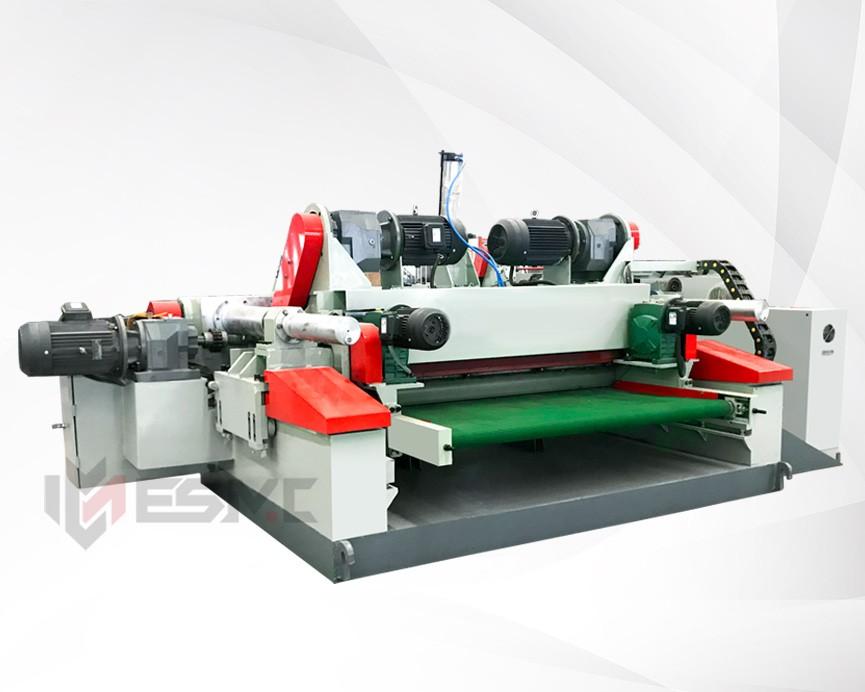

0.5-4mm veneer lathe rotary peeling machine, 4/5ft spindless peeler

Specification
Model： ESM-S1500-50
Peeling speed： 30-100 m/min
Veneer thickness： 0.5-4 mm
Log length： 1400 mm
Processing diameter： 40-500 mm
Single Roller Power： 7.5 KW*2
Double Roller Power： 7.5kw*2

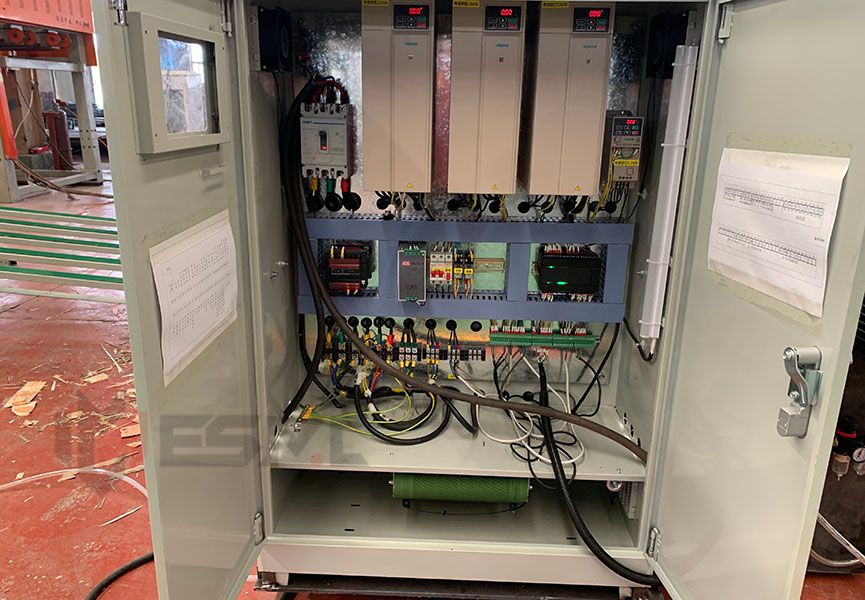

Knife Carriage Power： 11 kw servo motor
Knife size： 1500x180x16 mm
Weight： 6800 kg
Overal size： 4500x2250x1600 mm

4/ft Rotary Peeling and cutting lathe together. 0.5-4mm core veneers high accurate peeling. Log diameter 500mm. Suits South America,Turkey,Russia pines and eucalyptus, poplar,birch log.etc

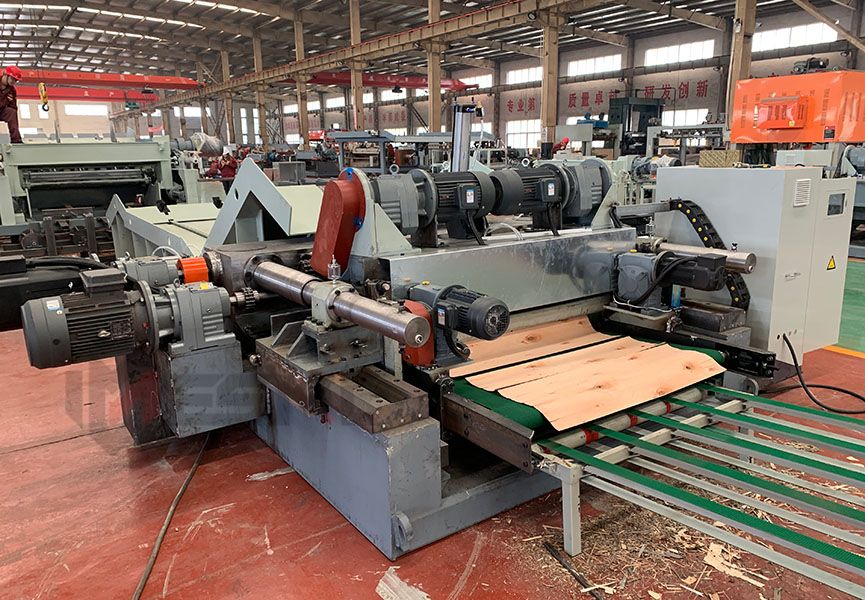

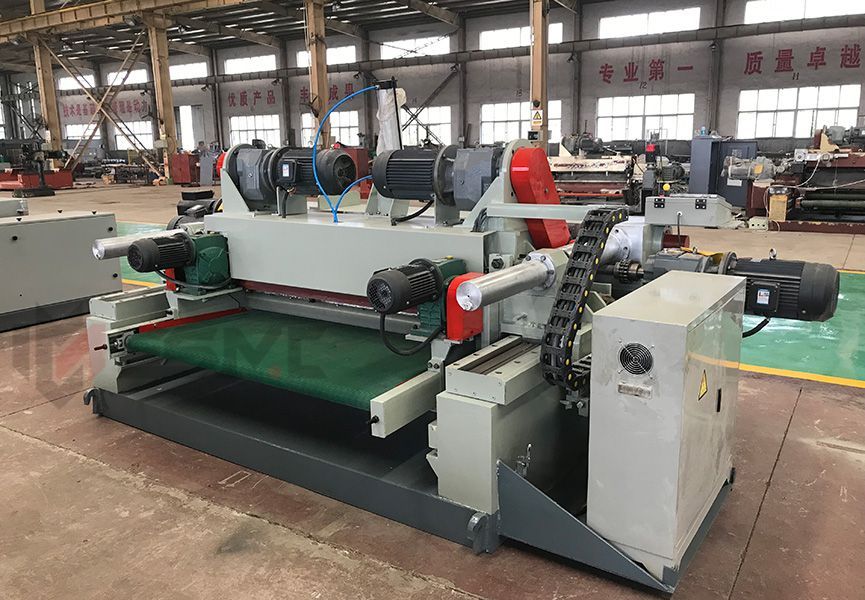

This 4,5ft veneer spindle less lathe, heavy duty model Wood peeling machine spindle less peeling and cutting machine, the mature type and as a main equipment in plywood production processing, to well peeling producing the high quality continuous veneer or special width veneer of certain specifications as needs.The veneer peeling machine’s quality and performance have strong relationship with plywood production and quality. Simple control and stable working is its advantage in various wood log rotary core veneer spindle less making.

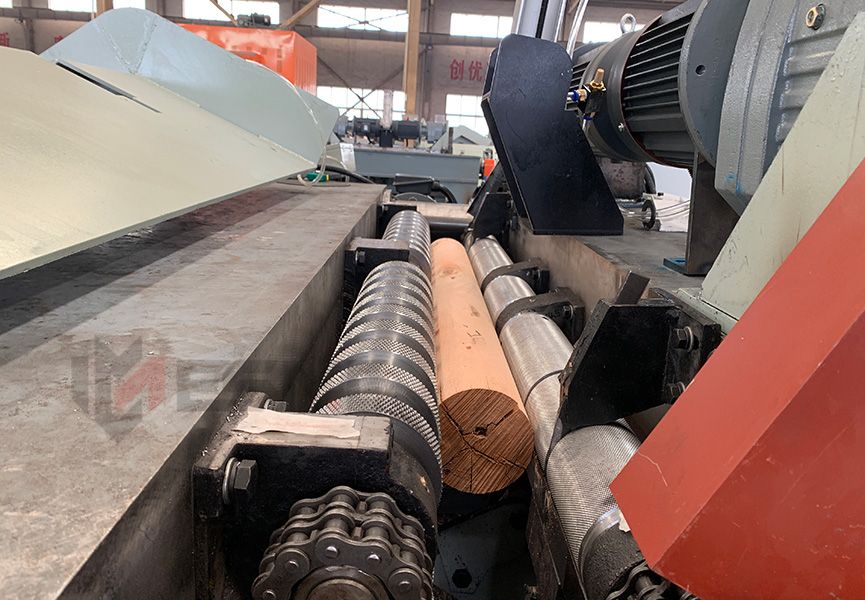

spindle less peeling and cutting.jpg

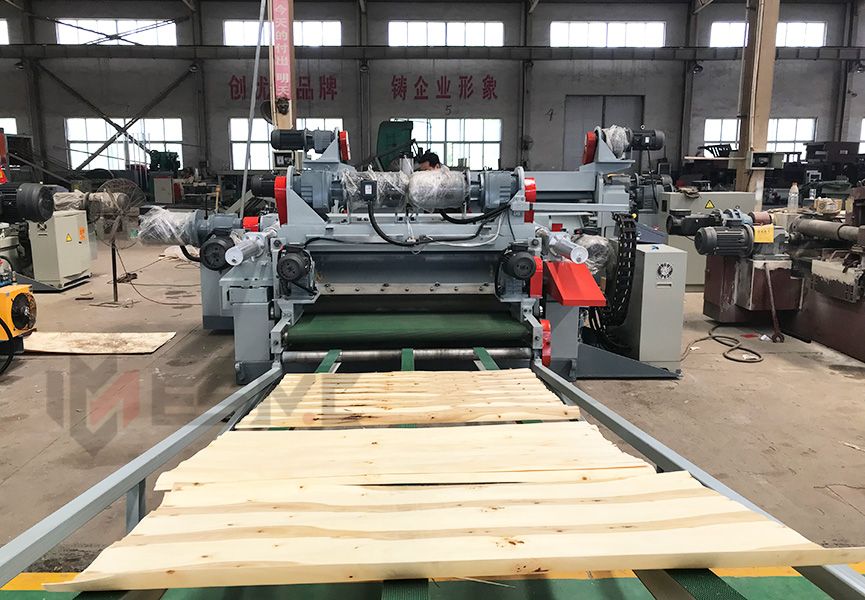

Full automatic and semi-auto Veneer Rotary Peeling Production Line With different Size.

1,Processing of smooth, uniform wood veneer board surface.

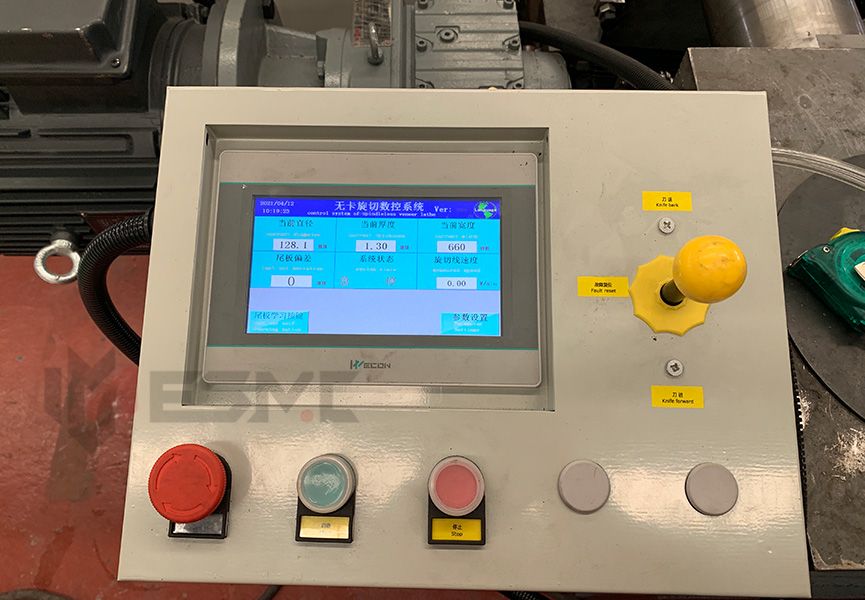

2, High working efficiency and simple control and simple maintance.
3,Take with higher standard lead screws, rollers and spare parts keep longer service life.

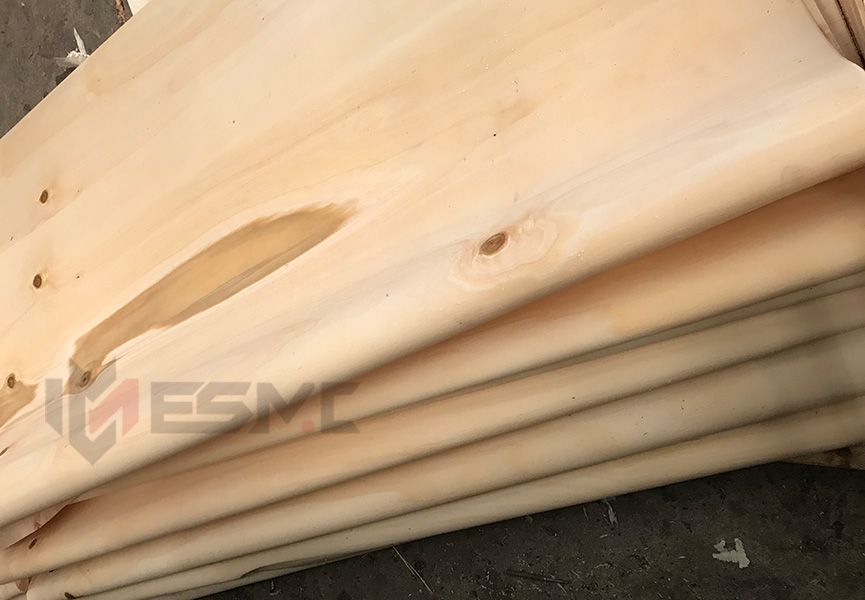

4, High quality veneers, save your costs and improve production output.

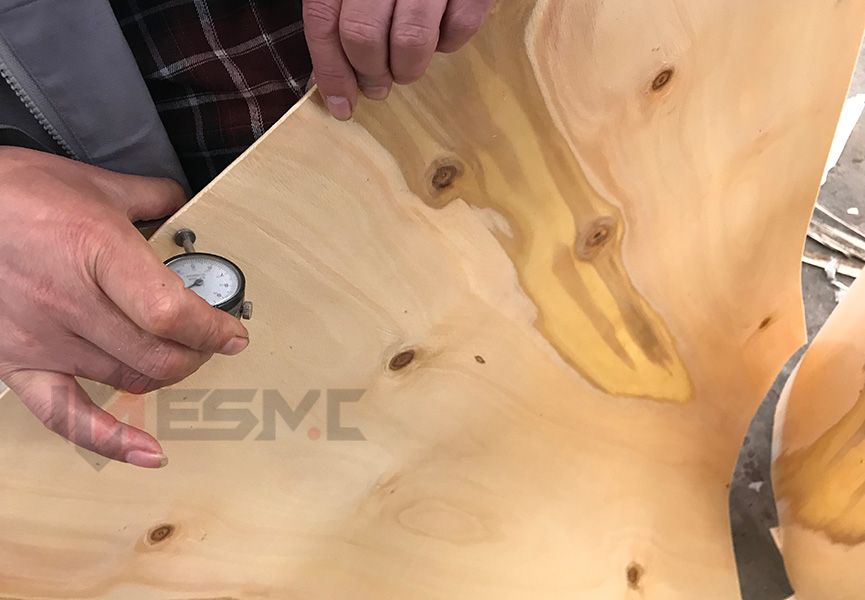

5,High accurate and stable veneers thickness. common core veneers, the thickness among 1.4-1.6mm if you set veneer as 1.5mm.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
